3D Astigmatic Fitting

This example demonstrates 3D localization using the AstigmaticXYZNB model, which uses a cylindrical lens to encode z-position in the ellipticity of the PSF.

Theory

Astigmatic PSF Model

A cylindrical lens introduces astigmatism, causing the PSF to have different focal planes for the x and y directions. The PSF widths vary with z according to:

\[\sigma_x(z) = \sigma_{x0} \sqrt{\alpha_x(z)} \quad \text{where} \quad \alpha_x(z) = 1 + \left(\frac{z-\gamma}{d}\right)^2 + A_x\left(\frac{z-\gamma}{d}\right)^3 + B_x\left(\frac{z-\gamma}{d}\right)^4\]

\[\sigma_y(z) = \sigma_{y0} \sqrt{\alpha_y(z)} \quad \text{where} \quad \alpha_y(z) = 1 + \left(\frac{z+\gamma}{d}\right)^2 + A_y\left(\frac{z+\gamma}{d}\right)^3 + B_y\left(\frac{z+\gamma}{d}\right)^4\]

The key insight: at z=0, both widths are at their minimum. Moving in +z causes σx to increase while σy stays narrow (and vice versa for -z). The fitter uses this ellipticity to determine z.

Parameter Meanings

The focal plane offset γ determines the separation between the two astigmatic foci. Larger γ gives better z-resolution but reduces the usable z-range.

PSF Calibration Curve and Shape

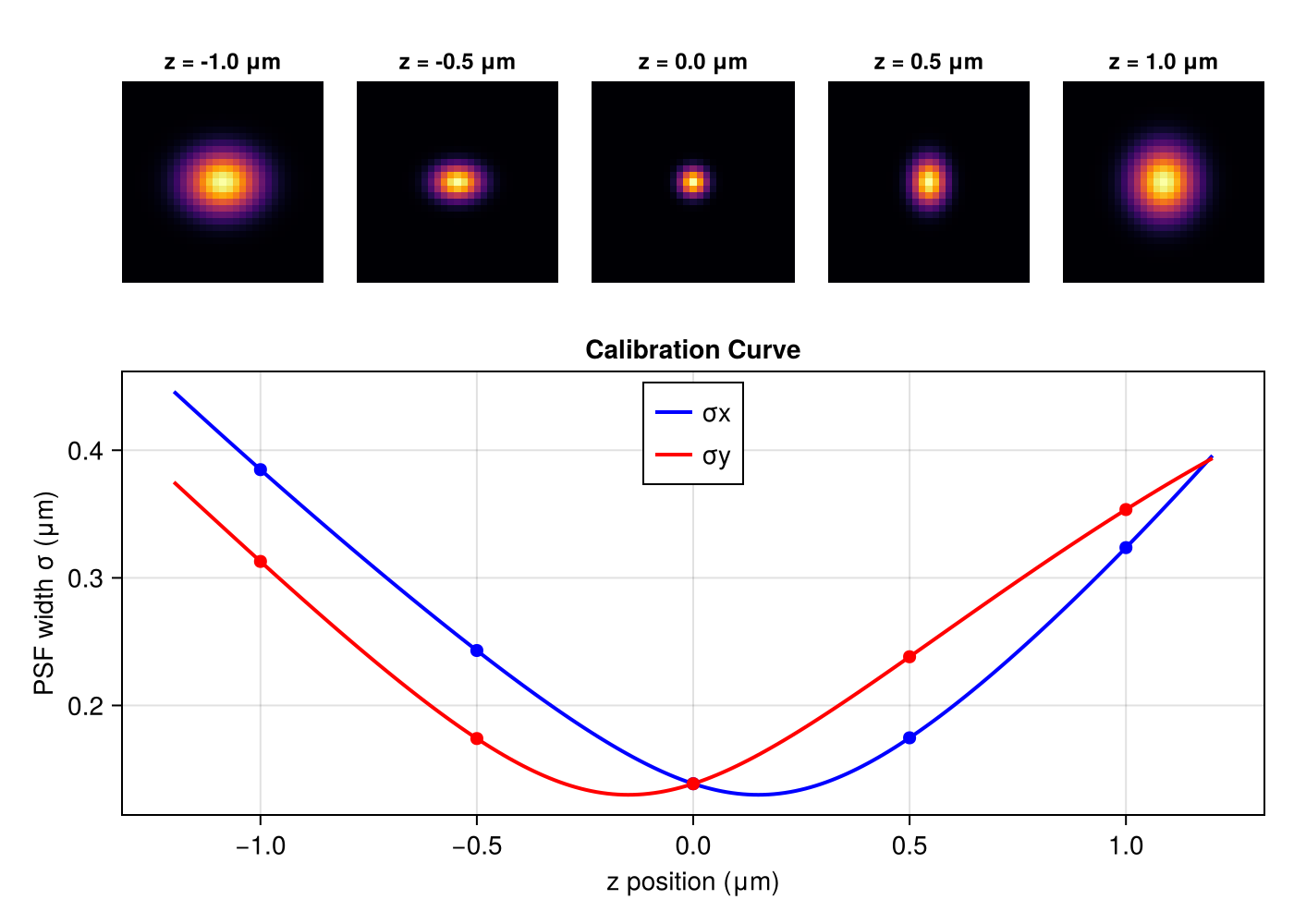

The following shows how σx and σy vary with z, along with PSF images at different z positions:

using CairoMakie

# Astigmatic PSF parameters (typical values)
σx₀, σy₀ = 0.13, 0.13   # in-focus widths (μm)
Ax, Ay = 0.05, -0.05    # cubic coefficients
Bx, By = 0.01, -0.01    # quartic coefficients
γ = 0.15                 # focal plane offset (μm)
d = 0.4                  # depth scale (μm)

# Compute sigma at given z
function compute_sigma(z)
    α_x = 1 + ((z - γ)/d)^2 + Ax*((z - γ)/d)^3 + Bx*((z - γ)/d)^4
    α_y = 1 + ((z + γ)/d)^2 + Ay*((z + γ)/d)^3 + By*((z + γ)/d)^4
    return σx₀ * sqrt(α_x), σy₀ * sqrt(α_y)
end

# Generate PSF image at given z
function make_psf_image(z; imgsize=31, pixel=0.1)
    img = zeros(Float32, imgsize, imgsize)
    center = (imgsize + 1) / 2
    sx, sy = compute_sigma(z)
    sx_pix, sy_pix = sx / pixel, sy / pixel
    for j in 1:imgsize, i in 1:imgsize
        x, y = j - center, i - center
        img[i,j] = exp(-x^2/(2sx_pix^2) - y^2/(2sy_pix^2))
    end
    return img
end

# Create combined figure
fig = Figure(size=(700, 500))

# Top row: PSF images at different z
z_positions = [-1.0, -0.5, 0.0, 0.5, 1.0]
for (idx, z) in enumerate(z_positions)
    ax = Axis(fig[1, idx], title="z = $z μm", aspect=1,
              titlesize=12, yreversed=true)
    hidedecorations!(ax)
    hidespines!(ax)
    img = make_psf_image(z)
    heatmap!(ax, img', colormap=:inferno)  # transpose for proper x/y orientation
end

# Bottom: sigma vs z curve
ax_curve = Axis(fig[2, 1:5],
    xlabel="z position (μm)",
    ylabel="PSF width σ (μm)",
    title="Calibration Curve"
)

z_range = range(-1.2, 1.2, length=200)
sigmas = [compute_sigma(z) for z in z_range]
σx_vals = [s[1] for s in sigmas]
σy_vals = [s[2] for s in sigmas]

lines!(ax_curve, collect(z_range), σx_vals, label="σx", linewidth=2, color=:blue)
lines!(ax_curve, collect(z_range), σy_vals, label="σy", linewidth=2, color=:red)

# Mark the z positions shown in images
for z in z_positions
    sx, sy = compute_sigma(z)
    scatter!(ax_curve, [z], [sx], color=:blue, markersize=10)
    scatter!(ax_curve, [z], [sy], color=:red, markersize=10)
end

axislegend(ax_curve, position=:ct)
rowsize!(fig.layout, 1, Relative(0.35))

fig

At z < 0, the PSF is elongated vertically (σy > σx). At z > 0, it's elongated horizontally (σx > σy). The crossing point near z=0 is where the PSF is most circular. The fitter uses this ellipticity to determine z position.

Basic 3D Fitting

using GaussMLE
using Statistics

# Camera and PSF setup
camera = IdealCamera(0:1023, 0:1023, 0.1)  # 100nm pixels

psf = AstigmaticXYZNB{Float32}(
    0.13f0, 0.13f0,   # σx₀, σy₀
    0.05f0, -0.05f0,  # Ax, Ay
    0.01f0, -0.01f0,  # Bx, By
    0.15f0, 0.4f0     # γ, d
)

# Generate test data
batch = generate_roi_batch(camera, psf, n_rois=500, roi_size=13)

# Fit
fitter = GaussMLEConfig(psf_model=psf, iterations=30)
smld, info = fit(batch, fitter)

# Access 3D positions (Emitter3DFitGaussMLE type)
x_pos = [e.x for e in smld.emitters]
y_pos = [e.y for e in smld.emitters]
z_pos = [e.z for e in smld.emitters]

println("Fitted $(length(smld.emitters)) localizations")
println("Z range: $(round(minimum(z_pos), digits=3)) to $(round(maximum(z_pos), digits=3)) μm")
println("Mean z precision: $(round(mean([e.σ_z for e in smld.emitters])*1000, digits=1)) nm")

Output: Emitter3DFit

The AstigmaticXYZNB model returns Emitter3DFitGaussMLE emitters with:

Quality Filtering

Filter 3D localizations by precision:

using GaussMLE

# Fit data
fitter = GaussMLEConfig(psf_model=psf, iterations=30)
smld, info = fit(batch, fitter)

# Filter by z precision (typically worse than xy)
good_z = @filter(smld, σ_z < 0.050)  # z precision < 50nm

# Combined precision filter
precise = @filter(smld, σ_x < 0.020 && σ_y < 0.020 && σ_z < 0.040)

println("Kept $(length(precise.emitters))/$(length(smld.emitters)) with good 3D precision")

Calibration Tips

Obtaining Calibration Parameters

The astigmatic PSF parameters (σx₀, σy₀, Ax, Ay, Bx, By, γ, d) are typically determined by:

1. Bead calibration: Image fluorescent beads at known z positions
2. Fit widths: Measure σx and σy at each z (using GaussianXYNBSXSY model)
3. Curve fitting: Fit the polynomial model to extract parameters

Typical Values by Setup

Stronger astigmatism (larger γ) improves z precision but reduces the usable z range.

Z Localization Precision

Z precision depends on photon count and PSF parameters:

using GaussMLE
using Statistics

camera = IdealCamera(0:1023, 0:1023, 0.1)
psf = AstigmaticXYZNB{Float32}(
    0.13f0, 0.13f0, 0.05f0, -0.05f0, 0.01f0, -0.01f0, 0.15f0, 0.4f0
)

# Compare precision at different z positions
fitter = GaussMLEConfig(psf_model=psf, iterations=30)

for target_z in [-0.3, 0.0, 0.3]
    batch = generate_roi_batch(camera, psf, n_rois=200, roi_size=13)
    smld, info = fit(batch, fitter)

    σ_xy = mean([sqrt(e.σ_x^2 + e.σ_y^2)/sqrt(2) for e in smld.emitters])
    σ_z = mean([e.σ_z for e in smld.emitters])

    println("Mean xy precision: $(round(σ_xy*1000, digits=1)) nm")
    println("Mean z precision: $(round(σ_z*1000, digits=1)) nm")
end

Z precision is typically 2-3x worse than xy precision for astigmatic fitting.

Next Steps

• See Models for comparison with 2D models
• Learn about GPU Support for fitting large 3D datasets
• Check the API Reference for all AstigmaticXYZNB options
