SMLMDriftCorrection.jl

Fiducial-free drift correction for Single Molecule Localization Microscopy (SMLM).

Overview

SMLMDriftCorrection.jl implements entropy-based drift correction using Legendre polynomial models. The package provides:

• Intra-dataset drift correction: Drift within each dataset (movie segment) modeled as a polynomial over time
• Inter-dataset drift correction: Constant shifts between datasets to align them
• SMLD alignment (align_smld): Shift alignment in 2D or 3D, or affine alignment in 2D, of independent SMLD structures (e.g., multi-color channels)

All distance units are in micrometers (μm).

Installation

using Pkg
Pkg.add("SMLMDriftCorrection")

Quick Start

using SMLMSim
using SMLMDriftCorrection
using SMLMRender
DC = SMLMDriftCorrection

# Simulate blinking data (hexamers, 2 datasets)
params = StaticSMLMConfig(7.5, 0.13, 50, 2, 1000, 50.0, 2, [0.0, 1.0])
(smld_noisy, _) = simulate(params;
    pattern=Nmer2D(n=6, d=0.2),
    molecule=GenericFluor(; photons=35000.0, k_on=0.25, k_off=50.0),
    camera=IdealCamera(1:32, 1:32, 0.1)
)

# Create synthetic drift (~200nm diagonal) and apply it
drift_true = DC.LegendrePolynomial(smld_noisy; degree=2, initialize="zeros")
for ds in 1:smld_noisy.n_datasets
    drift_true.intra[ds].dm[1].coefficients .= [0.10, 0.03]   # x drift
    drift_true.intra[ds].dm[2].coefficients .= [0.08, -0.02]   # y drift
end
drift_true.inter[2].dm .= [0.05, -0.03]
smld_drifted = DC.applydrift(smld_noisy, drift_true)

# Correct drift
(smld_corrected, info) = driftcorrect(smld_drifted)

# Results
N = length(smld_noisy.emitters)
rmsd = sqrt(sum(
    ([e.x for e in smld_corrected.emitters] .- [e.x for e in smld_noisy.emitters]).^2 .+
    ([e.y for e in smld_corrected.emitters] .- [e.y for e in smld_noisy.emitters]).^2
) / N)
println("Localizations: ", N)
println("RMSD: ", round(rmsd * 1000, digits=1), " nm")
println("Elapsed: ", round(info.elapsed_s, digits=1), " s")

Localizations: 8471
RMSD: 0.3 nm
Elapsed: 21.9 s

Before and After

Histogram renders colored by frame number show drift smearing (before) and recovery (after):

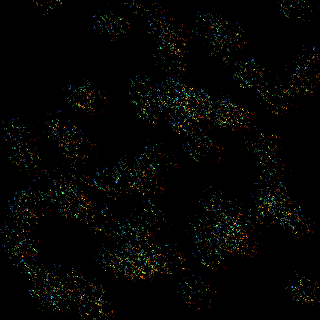

Drifted — localizations smeared by ~200 nm of drift:

(img_drifted, _) = render(smld_drifted, strategy=HistogramRender(), color_by=:frame, colormap=:turbo, zoom=10)
save_image("drifted.png", img_drifted)

Corrected — hexamer structure recovered (RMSD below 1 nm):

(img_corrected, _) = render(smld_corrected, strategy=HistogramRender(), color_by=:frame, colormap=:turbo, zoom=10)
save_image("corrected.png", img_corrected)

Usage Examples

With Simulated Data

using SMLMSim
using SMLMDriftCorrection
DC = SMLMDriftCorrection

# Simulate data
params = StaticSMLMConfig(10.0, 0.13, 30, 3, 1000, 50.0, 2, [0.0, 1.0])
(smld_noisy, _) = simulate(params;
    pattern=Nmer2D(n=6, d=0.2),
    molecule=GenericFluor(; photons=5000.0, k_on=0.02, k_off=50.0),
    camera=IdealCamera(1:64, 1:64, 0.1)
)

# Create and apply synthetic drift
drift_true = DC.LegendrePolynomial(smld_noisy; degree=2, initialize="random", rscale=0.1)
smld_drifted = DC.applydrift(smld_noisy, drift_true)

# Correct drift
config = DriftConfig(verbose=1)
(smld_corrected, info) = driftcorrect(smld_drifted, config)

With SMITE Data

using SMLMData
using SMLMDriftCorrection

smd = SmiteSMD(path, file)   # *_Results.mat file
smld = load_smite_2d(smd)
(smld_corrected, info) = driftcorrect(smld, DriftConfig(verbose=1))

Filtering to ROI

x = [e.x for e in smld.emitters]
y = [e.y for e in smld.emitters]
# thresholds are in μm (here a 6.4-12.8 μm square)
mask = (x .> 6.4) .& (x .< 12.8) .& (y .> 6.4) .& (y .< 12.8)
smld_roi = filter_emitters(smld, mask)

(smld_corrected, info) = driftcorrect(smld_roi, DriftConfig())

Continuous Acquisition Mode

For data where drift accumulates across files (one long acquisition split into multiple datasets):

# Continuous mode - one acquisition split across datasets
config = DriftConfig(dataset_mode=:continuous)
(smld_corrected, info) = driftcorrect(smld, config)

# With chunking for finer-grained correction
config = DriftConfig(dataset_mode=:continuous, chunk_frames=4000)
(smld_corrected, info) = driftcorrect(smld, config)

Aligning Independent SMLDs

For aligning separate acquisitions or multi-color channels:

using SMLMDriftCorrection

(aligned, info) = align_smld([smld_ch1, smld_ch2]; method=:entropy)
info.shifts  # [zeros(2), [dx, dy]]

Use transform=:affine for a 2D affine correction. info.transforms then holds similarity approximations; info.diagnostic holds the exact affine coefficients and global shifts. See align_smld for requirements.

Residual Drift Diagnostics

driftcorrect returns position-frame correlation diagnostics in info.residual_correlation, with per-dataset summaries and an inter-dataset check. Use position_frame_correlation to compute these diagnostics directly on any SMLD:

diag = position_frame_correlation(smld_corrected; K=20, mode=:intra)
diag.summary.mean_abs_corr_x

Warm Start / Continuation

# Warm start from previous model
config1 = DriftConfig(degree=2)
(smld1, info1) = driftcorrect(smld, config1)

config2 = DriftConfig(warm_start=info1.model)
(smld2, info2) = driftcorrect(smld2, config2)

# Continue iterating from previous result
(smld3, info3) = driftcorrect(smld, info1; max_iterations=5)

Pass the original, uncorrected smld with its info1. Continuation reuses the original run's dataset_mode and chunking, so it also works on chunked continuous results.

Dataset Modes

The modes use different inter-dataset algorithms; see Dataset Modes in Theory and Workflow. quality=:fft ignores dataset_mode.

• :registered (default): datasets are independent acquisitions (CC-primary inter alignment).
• :continuous: one long acquisition split into files or chunks (consecutive-chunk CC). Use drift_trajectory(info.model; cumulative=true) for plotting accumulated drift.

Algorithm

The algorithm uses entropy minimization (Cnossen et al., 2021) with Legendre polynomial basis functions:

1. Intra-dataset: For each dataset, fit a Legendre polynomial (degree 2 by default) to model drift over time. Uses KL divergence-based entropy as cost function with adaptive KDTree neighbor rebuilding. Threaded across datasets.

2. Inter-dataset: Align datasets using constant shifts. Registered mode uses a cross-correlation seed, entropy refinement, and an overlap arbiter. With two datasets only the second is aligned, against the first. With three or more, every dataset including the reference is aligned against the others; a move within 30 nm of the current shift is damped by (N-1)/N (N = number of datasets) to remove the overcount from updating all datasets at once. Larger moves into another basin are applied in full. Continuous mode aligns consecutive-chunk boundaries by cross-correlation, with endpoint-chaining as a per-boundary fallback.

3. Iterative (:iterative quality only): Repeat intra↔inter until the inter and intra parameter changes fall below convergence_tol or the entropy cost plateaus (relative improvement < 1e-4, both modes).

No tier, :fft included, applies a cross-correlation shift with a component over 5 μm. Registered :singlepass and :iterative, and :fft regardless of dataset_mode, warn once per dataset per call when a dropped CC overlaps clearly better than the shift the dataset ends with, indicating a likely collection failure (the stage moved between acquisitions). Continuous :singlepass and :iterative drop such a boundary CC and fall back to endpoint chaining at that boundary without a warning. See Theory and Workflow for the alignment rules.

The Legendre polynomial basis provides better optimization conditioning than standard polynomials because the basis functions are orthogonal over the normalized time domain [-1, 1].

References

• Cnossen J, et al. "Drift correction in localization microscopy using entropy minimization", Optics Express 29(18), 2021. DOI: 10.1364/OE.426620

• Wester MJ, et al. "Robust, fiducial-free drift correction for super-resolution imaging", Scientific Reports 11, 2021. DOI: 10.1038/s41598-021-02850-7

Documentation

• Configuration - Full description of DriftConfig input and DriftInfo output
• Theory & Workflow - Algorithm background, dataset modes, and quality tiers
• API Reference - Complete API documentation
