Diffusion-Interaction Examples

This page provides complete examples for using the diffusion-interaction simulation capabilities of SMLMSim.

Working with Trajectories

SMLMSim provides several utility functions for working with trajectories:

  • get_track(smld, id): Returns a new SMLD containing only emitters with the specified track_id
  • get_num_tracks(smld): Returns the number of unique tracks in an SMLD
  • get_tracks(smld): Returns a vector of SMDLs, one for each unique track

These functions are useful for analyzing and visualizing trajectory data, as demonstrated in the examples below.

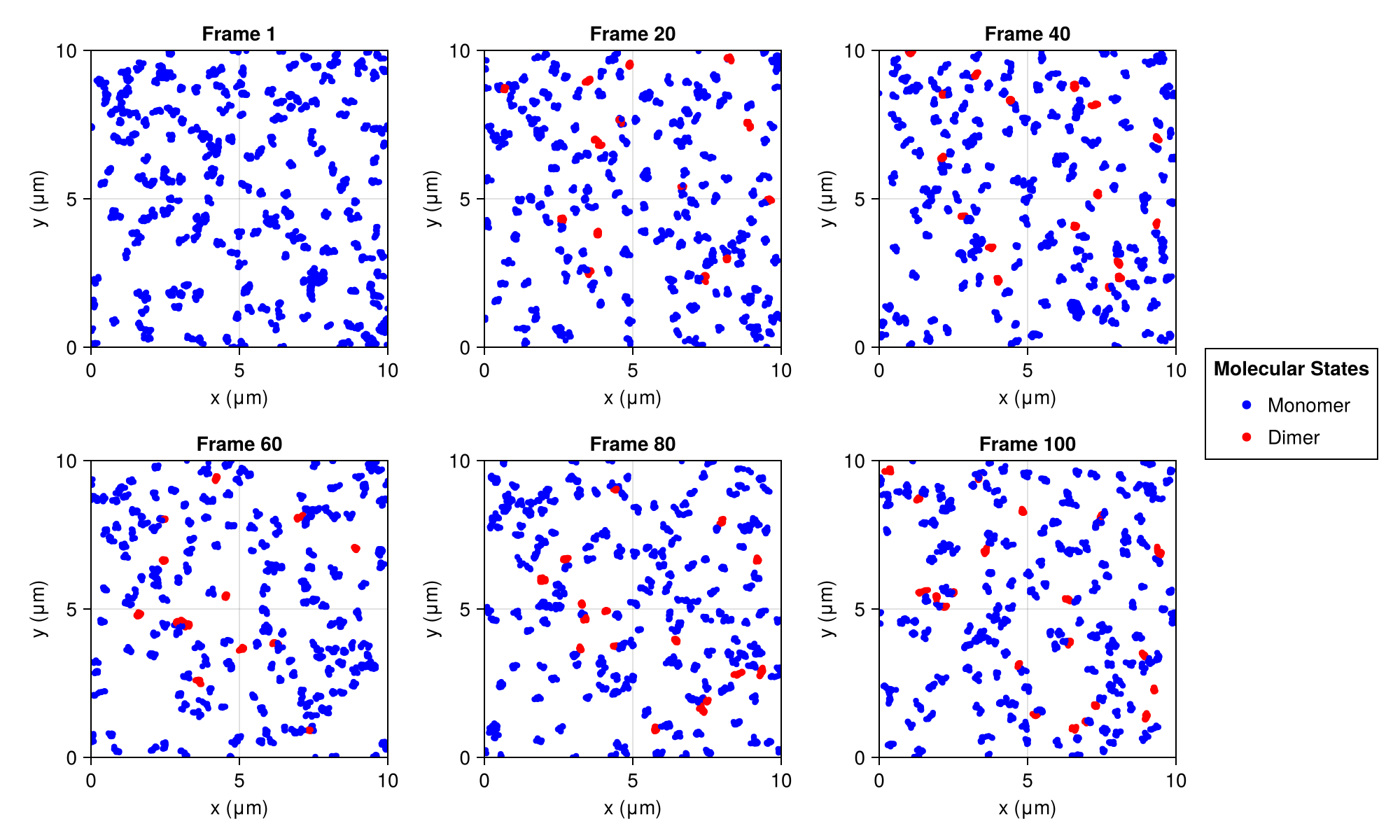

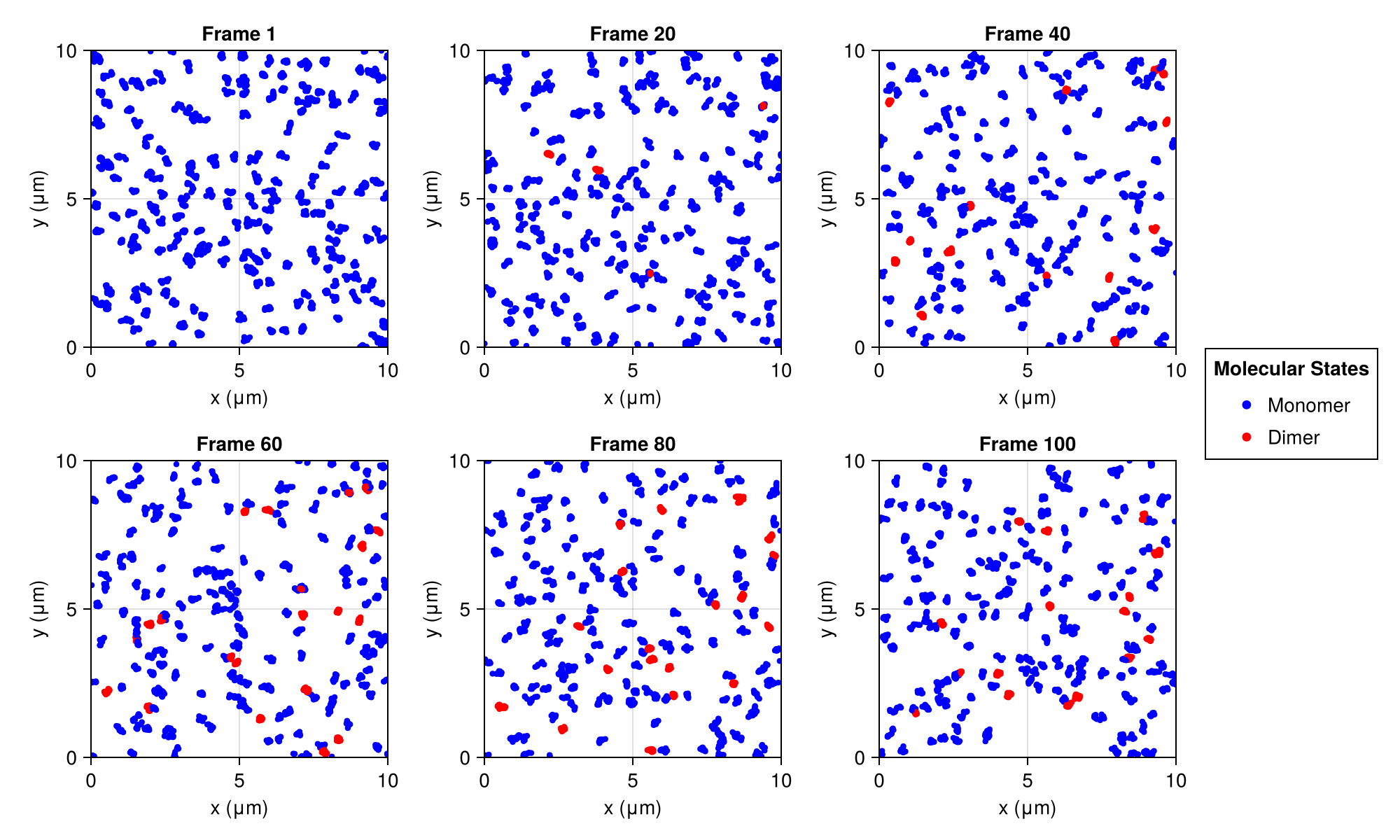

Basic Diffusion Simulation

This example demonstrates how to run a basic diffusion simulation and visualize the results:

using SMLMSim
using CairoMakie
using MicroscopePSFs

# Set up simulation parameters
params = DiffusionSMLMParams(
    density = 2.0,        # molecules per μm²
    box_size = 10.0,      # μm
    diff_monomer = 0.1,   # μm²/s
    diff_dimer = 0.05,    # μm²/s
    k_off = 0.2,          # s⁻¹
    r_react = 0.01,       # μm
    d_dimer = 0.05,       # μm
    dt = 0.01,            # s
    t_max = 10.0,         # s
    camera_framerate = 10.0  # fps
)

# Run simulation
smld = simulate(params; photons=1000.0)

# Extract coordinates based on monomer/dimer state for a specific frame
function extract_frame_by_state(smld, frame_num)
    # This approach doesn't use our new utility functions directly yet,
    # but demonstrates what would be useful additions in the future
    # (e.g., get_frame and filter_by_state functions)

    # Filter emitters for this frame the traditional way
    frame_emitters = filter(e -> e.frame == frame_num, smld.emitters)

    # Extract coordinates and states
    x = [e.x for e in frame_emitters]
    y = [e.y for e in frame_emitters]
    states = [e.state for e in frame_emitters]

    # Create state-based colors
    colors = map(states) do state
        state == :monomer ? :blue : :red
    end

    return x, y, colors
end

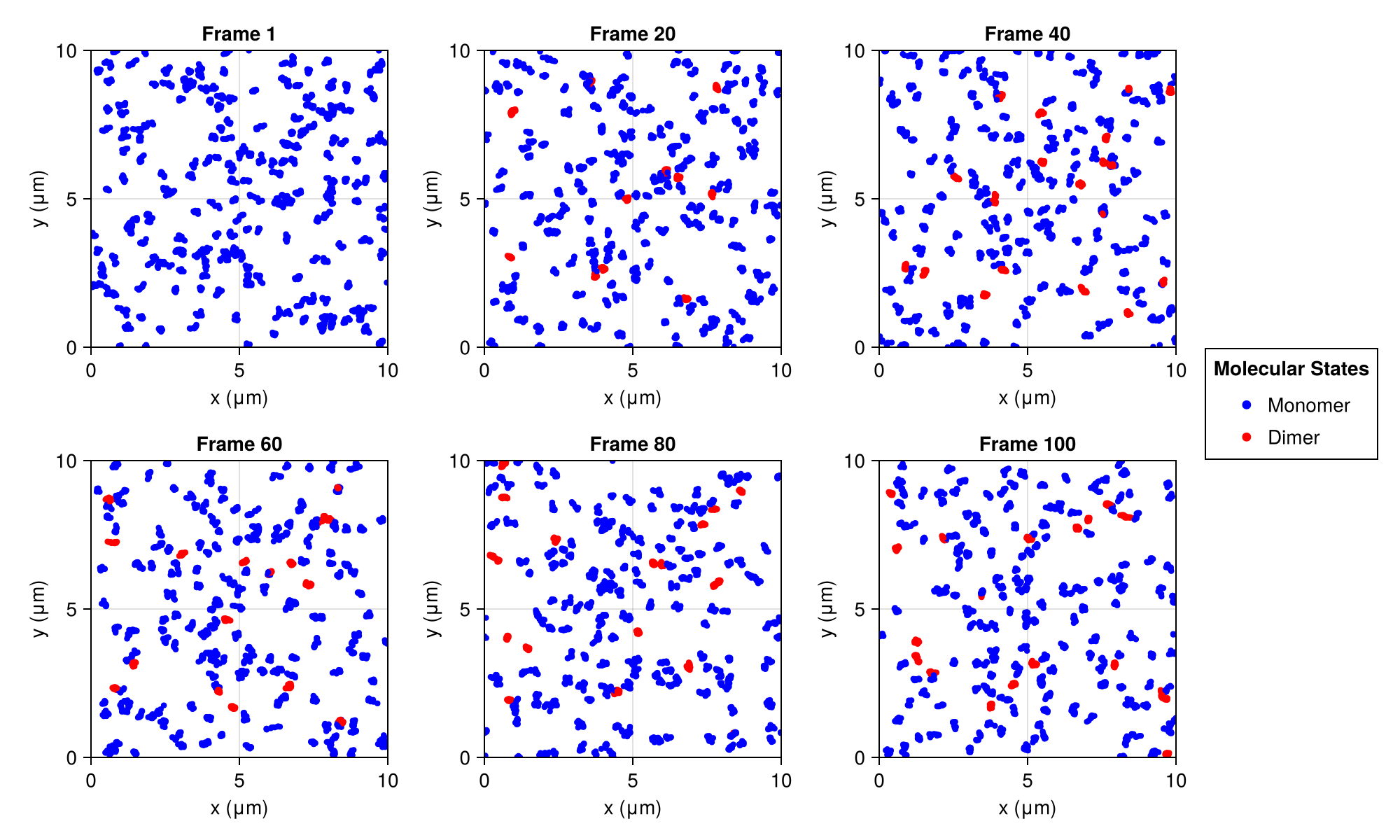

# Create visualization for multiple frames
frames_to_show = [1, 20, 40, 60, 80, 100]
fig = Figure(size=(1000, 600))

for (i, frame) in enumerate(frames_to_show)
    # Calculate subplot position (2x3 grid)
    row = div(i-1, 3) + 1
    col = rem(i-1, 3) + 1

    # Create axis
    ax = Axis(fig[row, col],
        title="Frame $frame",
        xlabel="x (μm)",
        ylabel="y (μm)",
        aspect=DataAspect()
    )

    # Extract and plot data
    x, y, colors = extract_frame_by_state(smld, frame)
    scatter!(ax, x, y, color=colors, markersize=6)

    # Set consistent axis limits
    limits!(ax, 0, params.box_size, 0, params.box_size)
end

# Add legend
fig[1:2, 4] = Legend(fig,
    [MarkerElement(color=:blue, marker=:circle),
     MarkerElement(color=:red, marker=:circle)],
    ["Monomer", "Dimer"],
    "Molecular States"
)

fig

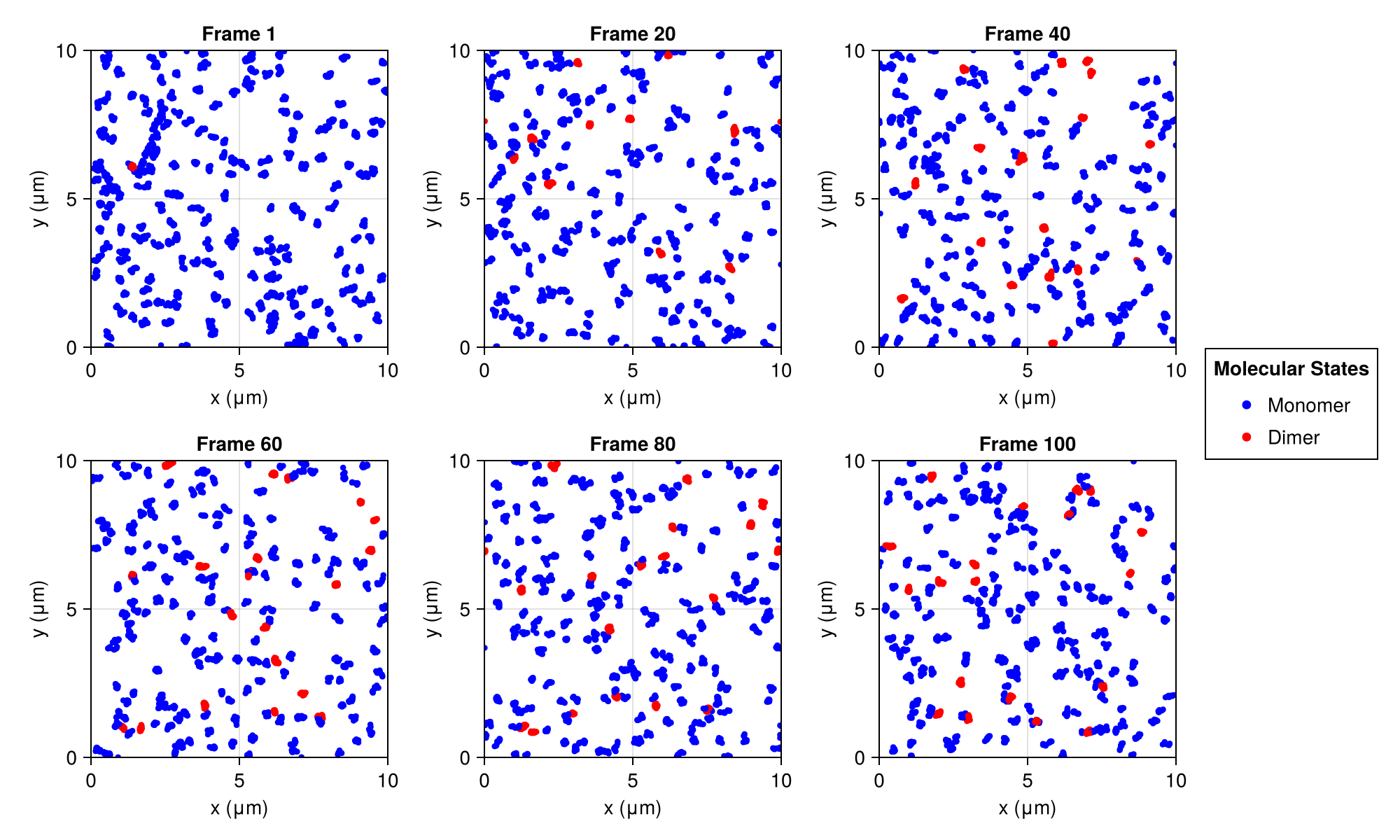

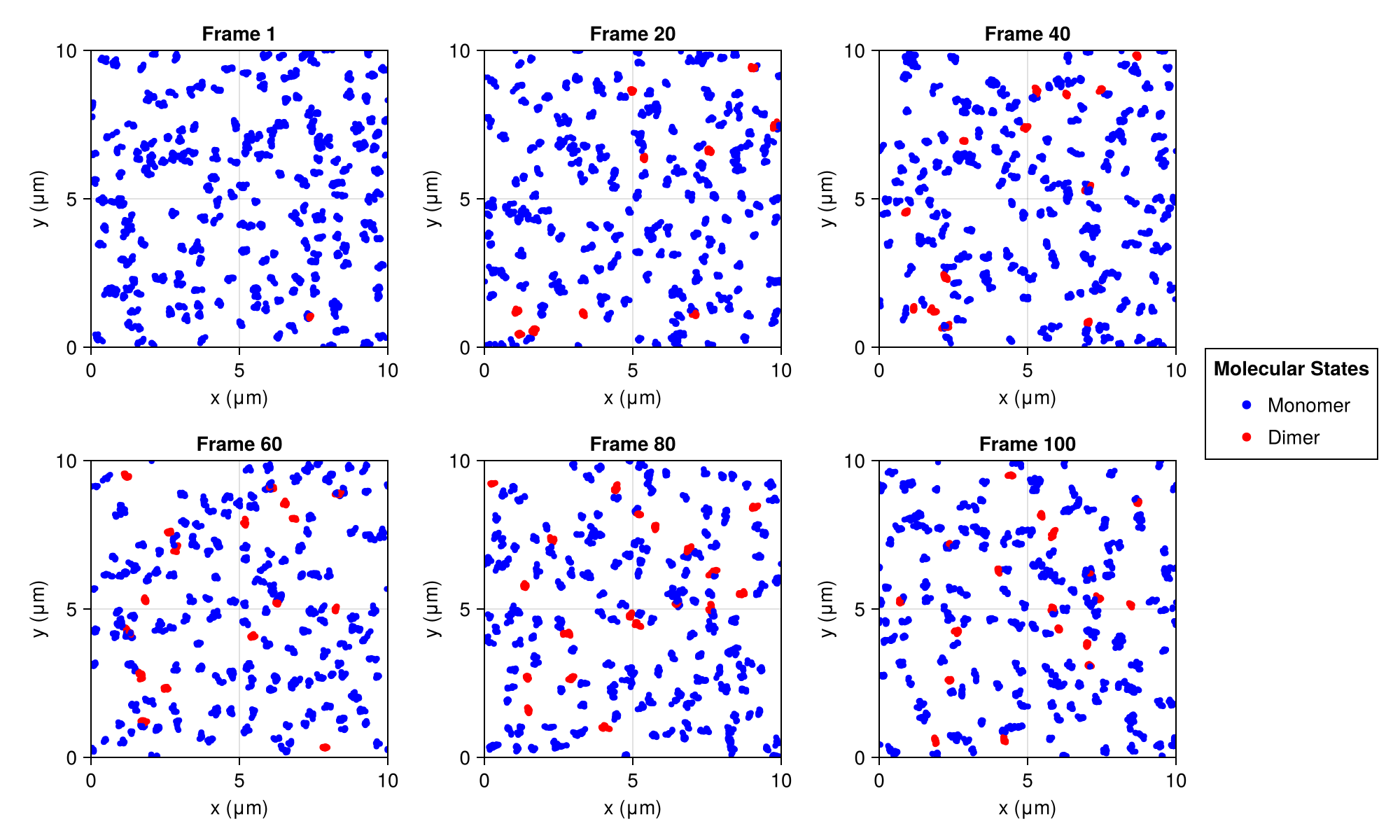

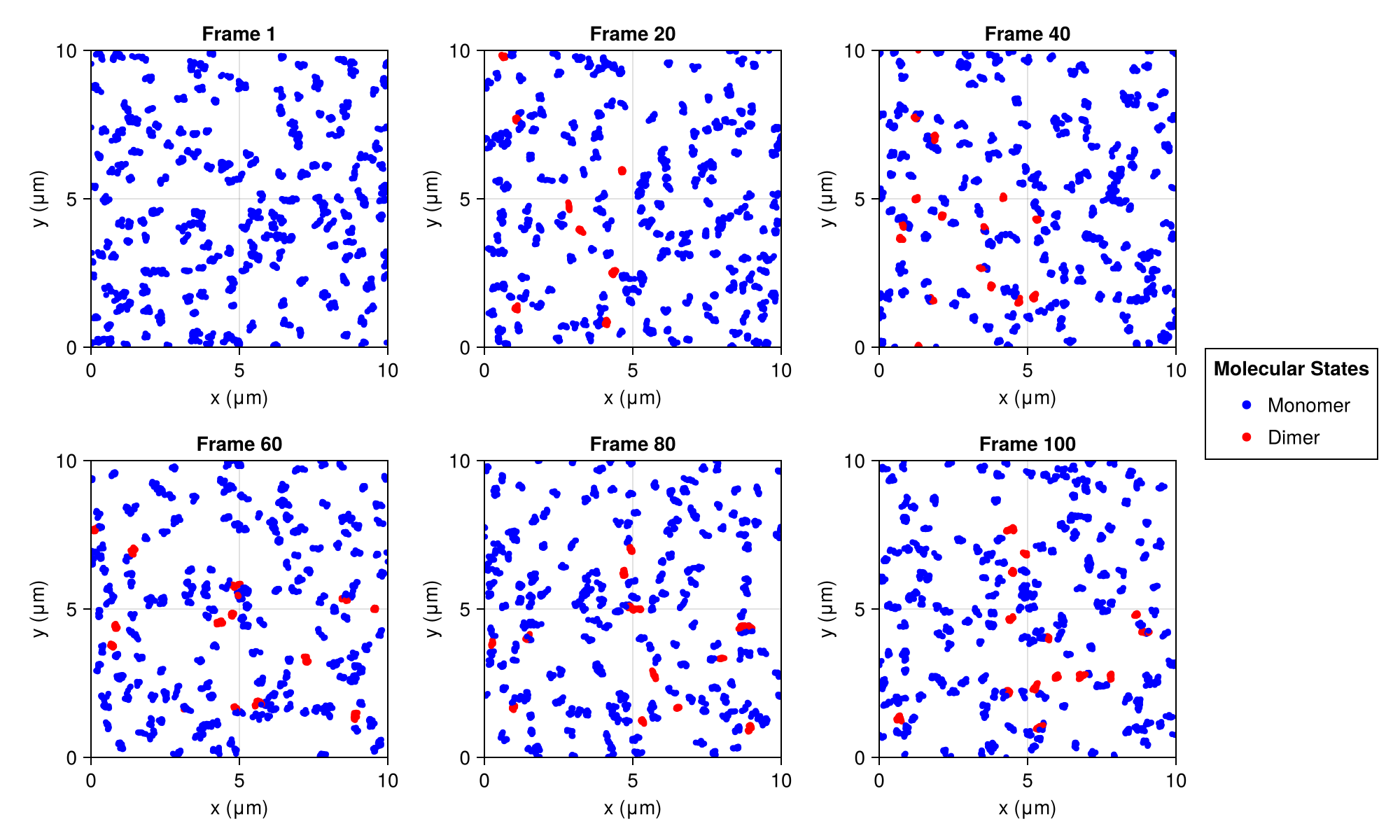

Example block output

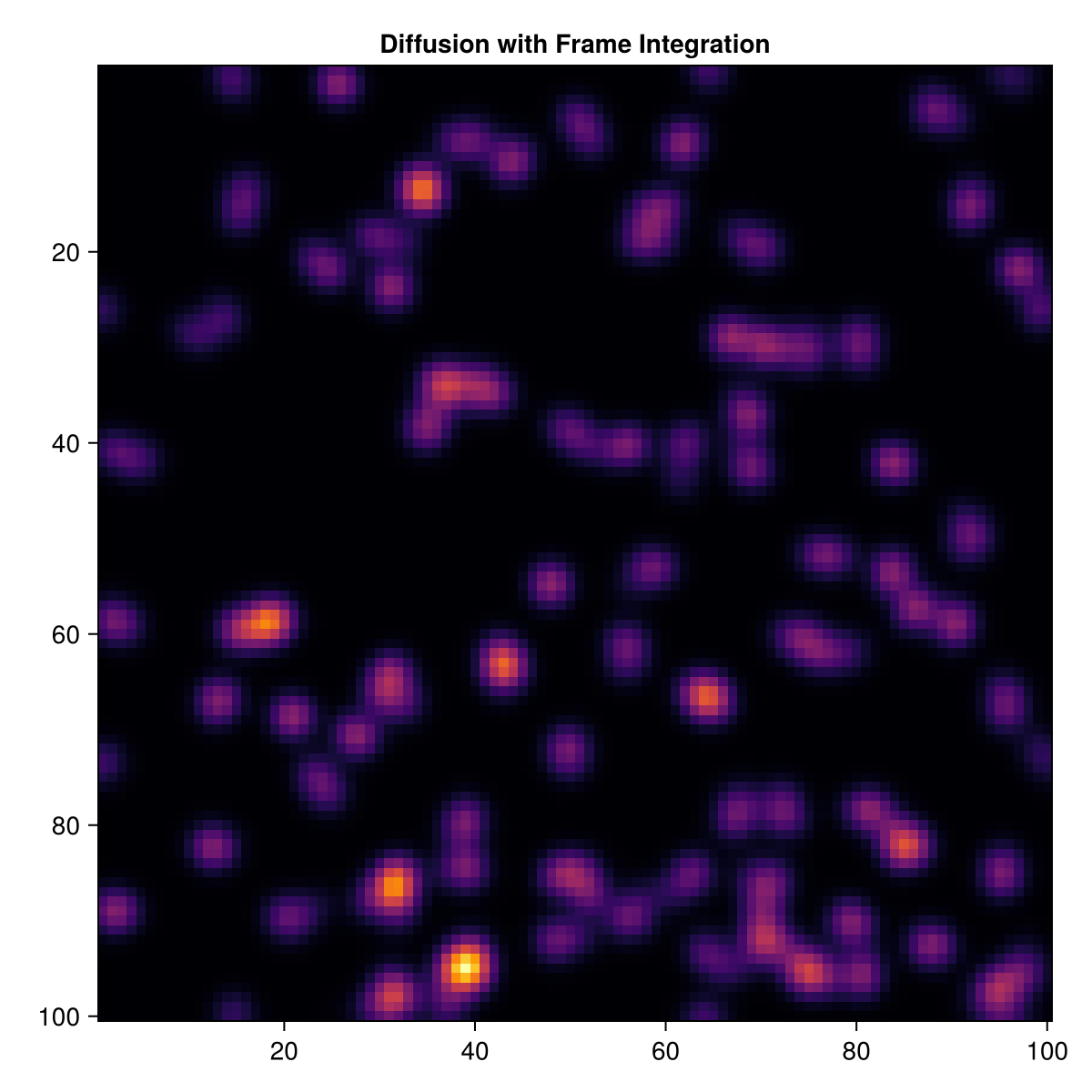

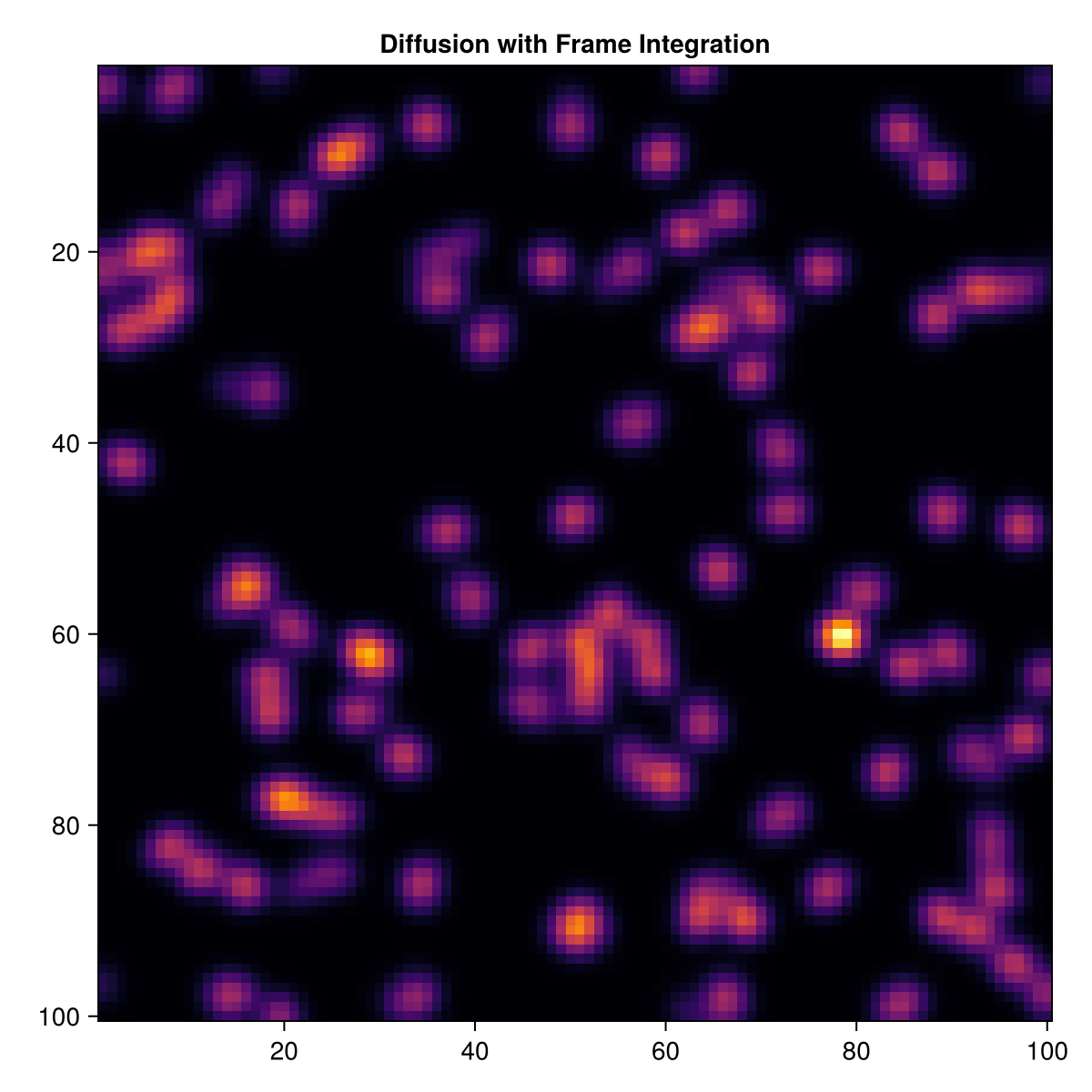

Frame Integration for Time-Lapse Imaging

This example demonstrates how to use frame integration to create realistic time-lapse microscopy data from diffusion simulations:

using SMLMSim
using MicroscopePSFs
using CairoMakie

# Set up diffusion parameters with high temporal resolution
params = DiffusionSMLMParams(
    density = 1.0,          # molecules per μm²
    box_size = 10.0,        # μm
    diff_monomer = 0.2,     # μm²/s (moderate diffusion)
    diff_dimer = 0.1,       # μm²/s
    k_off = 0.1,            # s⁻¹
    r_react = 0.01,         # μm
    d_dimer = 0.05,         # μm
    dt = 0.001,             # s (1ms time steps for accurate diffusion)
    t_max = 5.0,            # s (5 seconds total)
    camera_framerate = 10.0, # fps (10 frames per second)
    camera_exposure = 0.1    # s (100ms exposure time)
)

# Run simulation
smld = simulate(params)

# Setup camera and PSF
pixelsize = 0.1  # 100nm pixels
pixels = Int64(round(params.box_size/pixelsize))
camera = IdealCamera(1:pixels, 1:pixels, pixelsize)

# Create PSF model
psf = MicroscopePSFs.GaussianPSF(0.15)  # 150nm PSF width

# Generate microscope images from simulation
# For diffusion simulations, the camera integration time (exposure) has already been
# modeled in the simulation process, so each frame already includes the positions
# from all emitters that appeared during the exposure window
images = gen_images(smld, psf;
    bg=5.0,               # background photons per pixel
    poisson_noise=true     # add photon counting noise
)

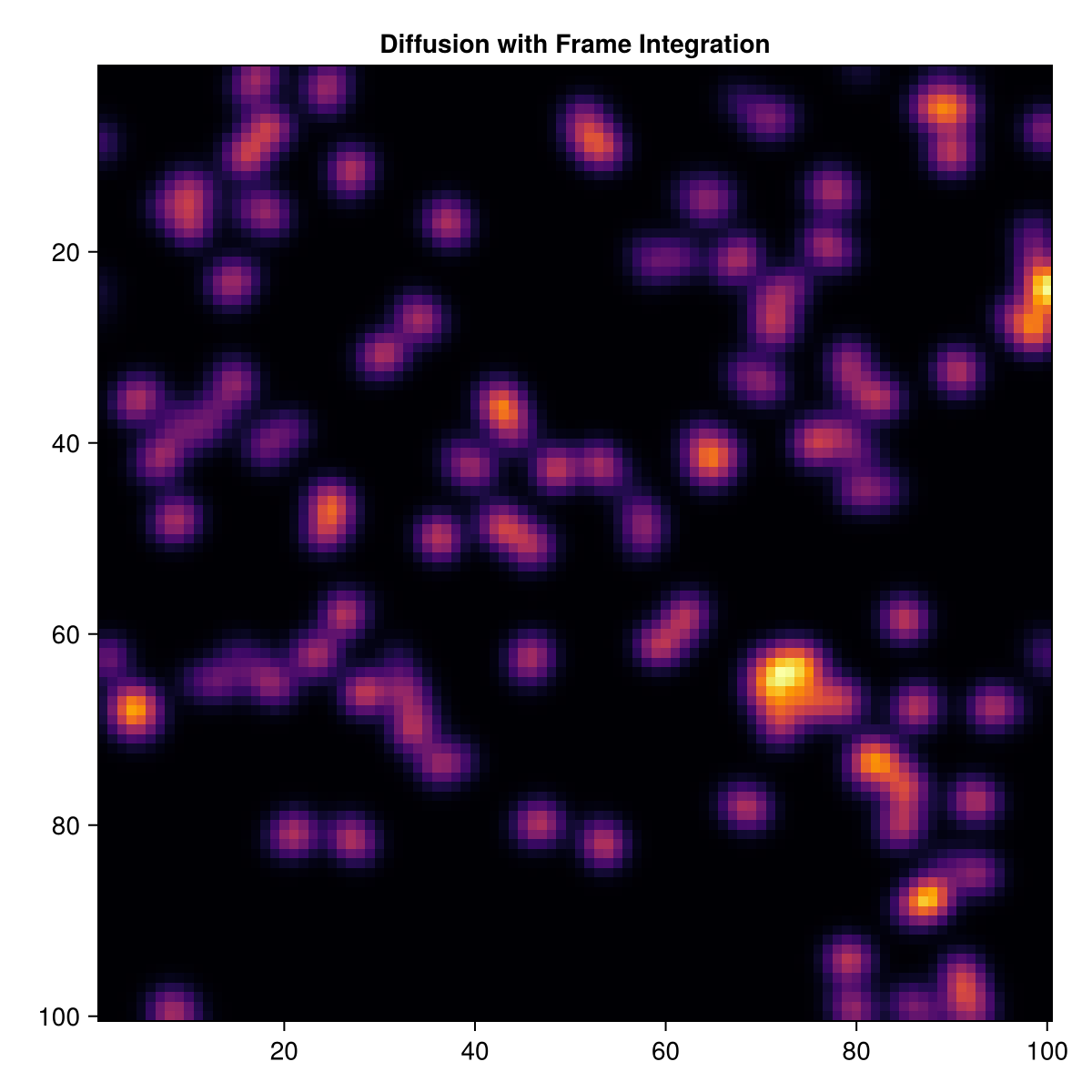

# Display a single frame
fig = Figure(size=(600, 600))
ax = Axis(fig[1, 1],
    title="Diffusion with Frame Integration",
    aspect=DataAspect(),
    yreversed=true
)

# Select a frame to display
frame_to_show = 3  # Changed from 15 to a valid frame index (between 1 and 6)
heatmap!(ax, transpose(images[:, :, frame_to_show]), colormap=:inferno)

fig

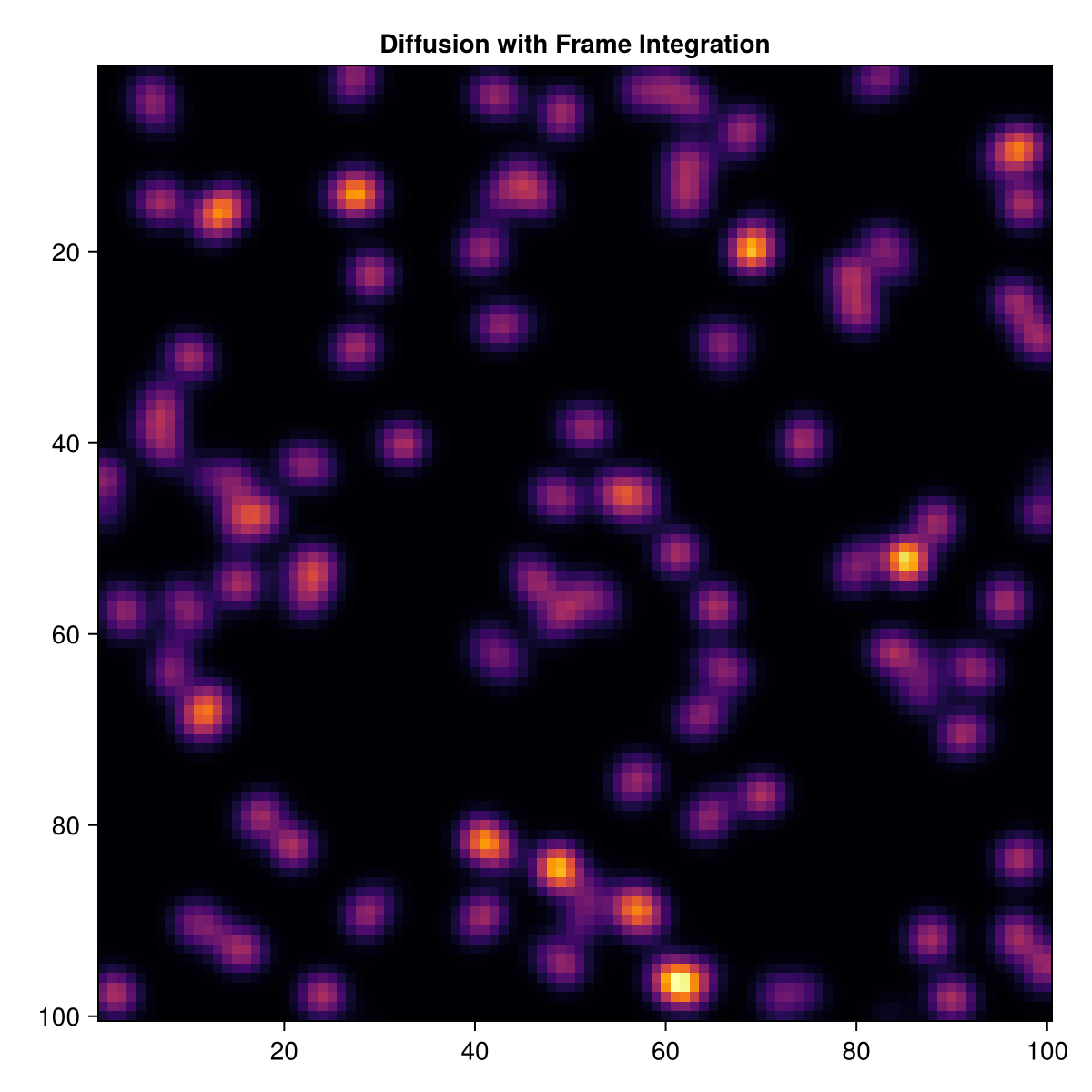

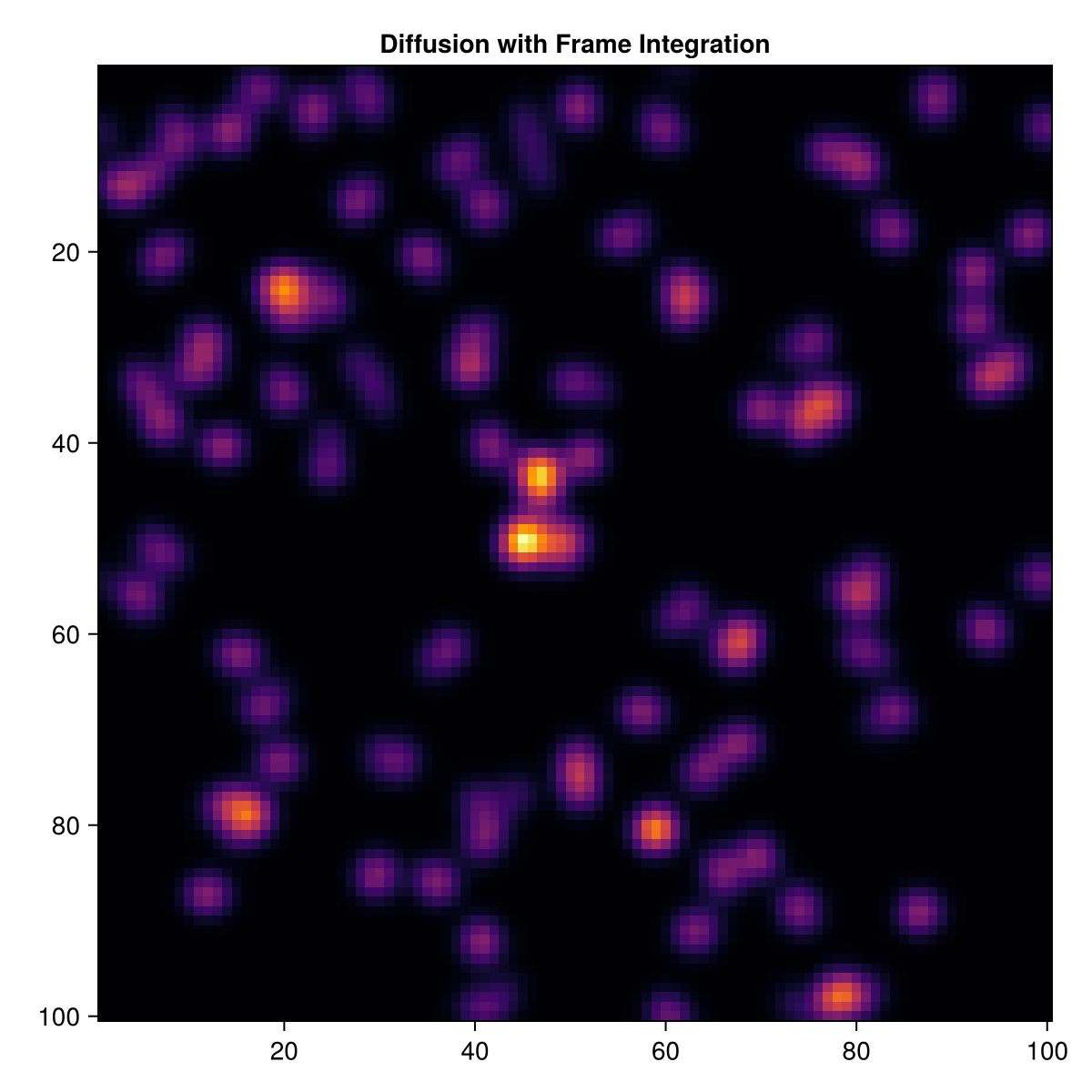

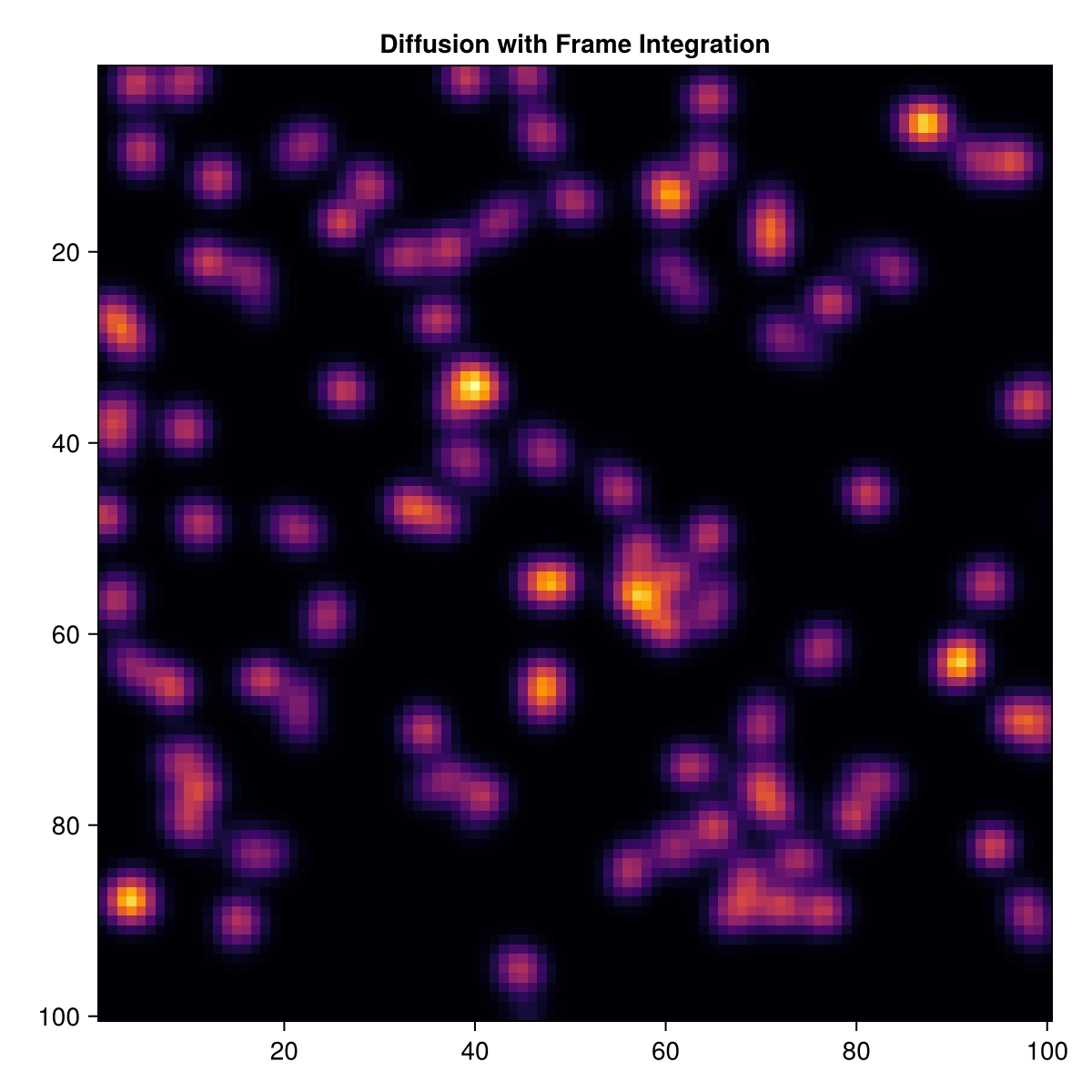

Example block output

The simulation already handles motion blur effects in a realistic way:

  • The camera_exposure parameter in the simulation determines how long each camera frame integrates photons
  • During the exposure window, multiple emitter positions from the same track_id are captured
  • This naturally creates motion blur effects where fast-moving particles appear more blurred
  • The resulting images accurately represent what would be seen in real microscopy experiments

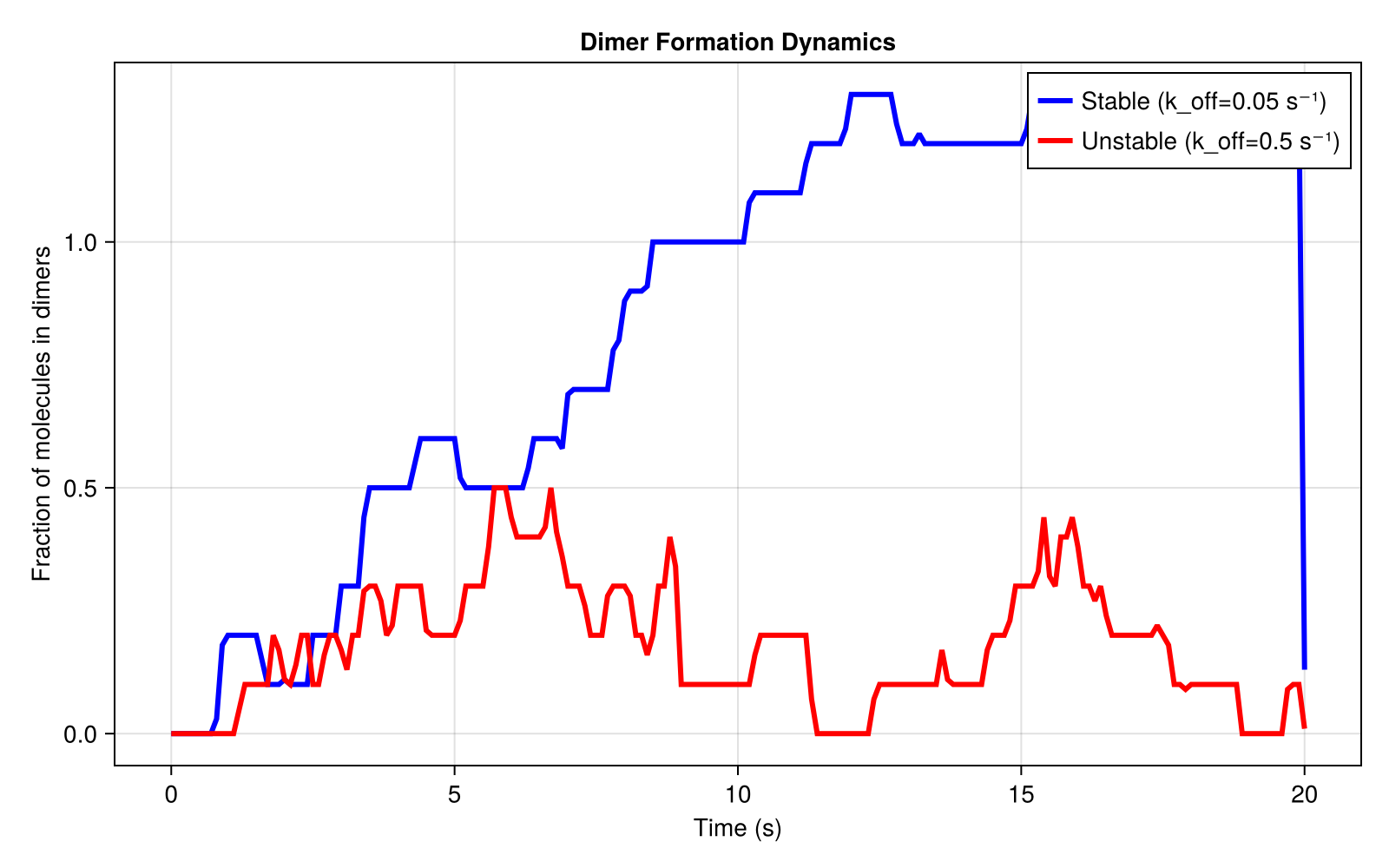

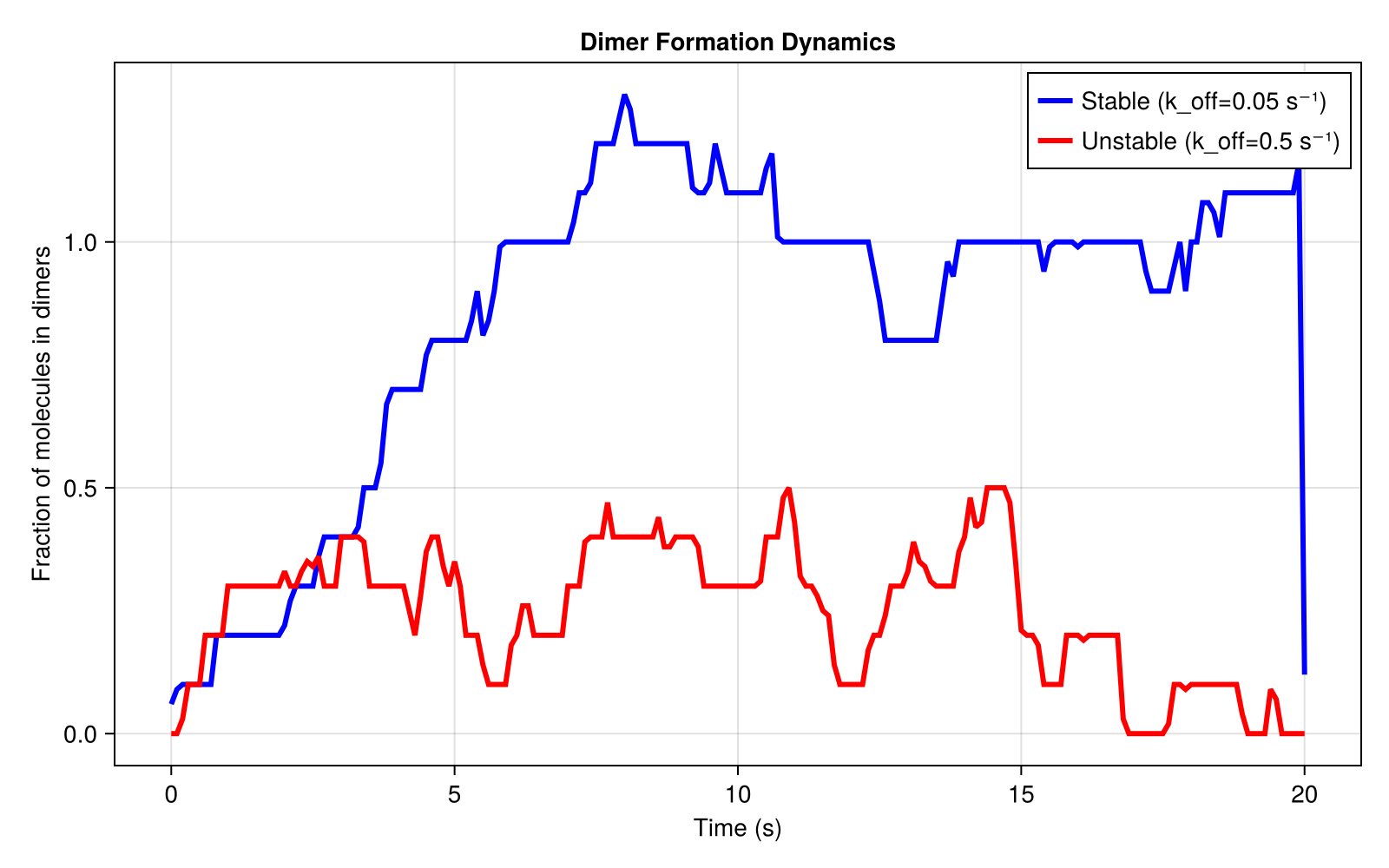

Analyzing Dimer Formation

This example demonstrates how to analyze dimer formation dynamics:

using SMLMSim
using CairoMakie

# Set up simulations with different dissociation rates
params_stable = DiffusionSMLMParams(
    density = 1.0,        # molecules per μm²
    diff_monomer = 0.1,   # μm²/s
    diff_dimer = 0.05,    # μm²/s
    k_off = 0.05,         # s⁻¹ (stable dimers)
    t_max = 20.0          # s
)

params_unstable = DiffusionSMLMParams(
    density = 1.0,        # molecules per μm²
    diff_monomer = 0.1,   # μm²/s
    diff_dimer = 0.05,    # μm²/s
    k_off = 0.5,          # s⁻¹ (unstable dimers)
    t_max = 20.0          # s
)

# Run simulations
smld_stable = simulate(params_stable)
smld_unstable = simulate(params_unstable)

# Analyze dimer formation
frames_stable, frac_stable = analyze_dimer_fraction(smld_stable)
frames_unstable, frac_unstable = analyze_dimer_fraction(smld_unstable)

# Calculate time in seconds
time_stable = (frames_stable .- 1) ./ params_stable.camera_framerate
time_unstable = (frames_unstable .- 1) ./ params_unstable.camera_framerate

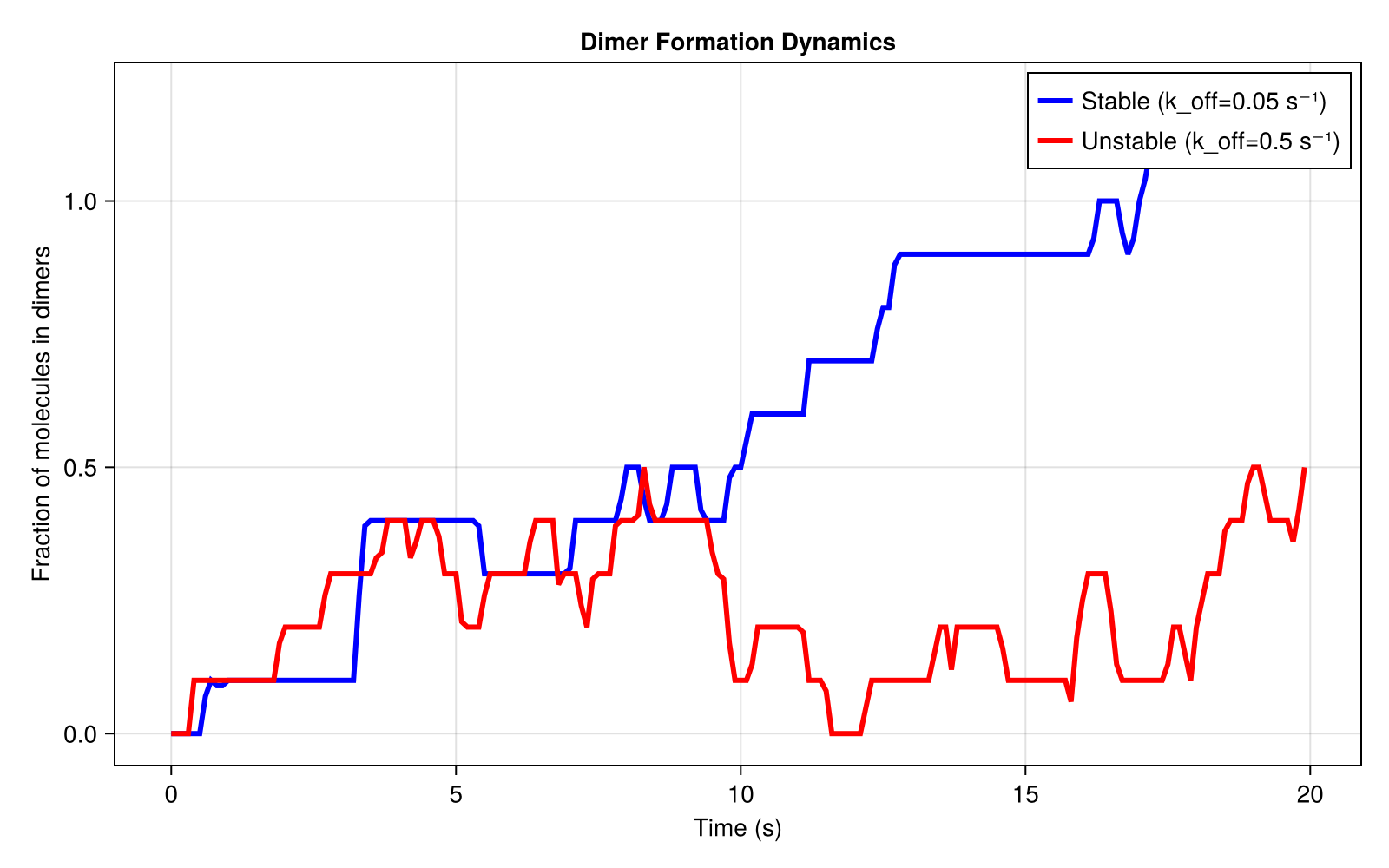

# Visualize dimer formation dynamics
fig = Figure(size=(800, 500))

ax = Axis(fig[1, 1],
    title="Dimer Formation Dynamics",
    xlabel="Time (s)",
    ylabel="Fraction of molecules in dimers"
)

lines!(ax, time_stable, frac_stable, linewidth=3, color=:blue,
       label="Stable (k_off=0.05 s⁻¹)")
lines!(ax, time_unstable, frac_unstable, linewidth=3, color=:red,
       label="Unstable (k_off=0.5 s⁻¹)")

axislegend(ax)

fig

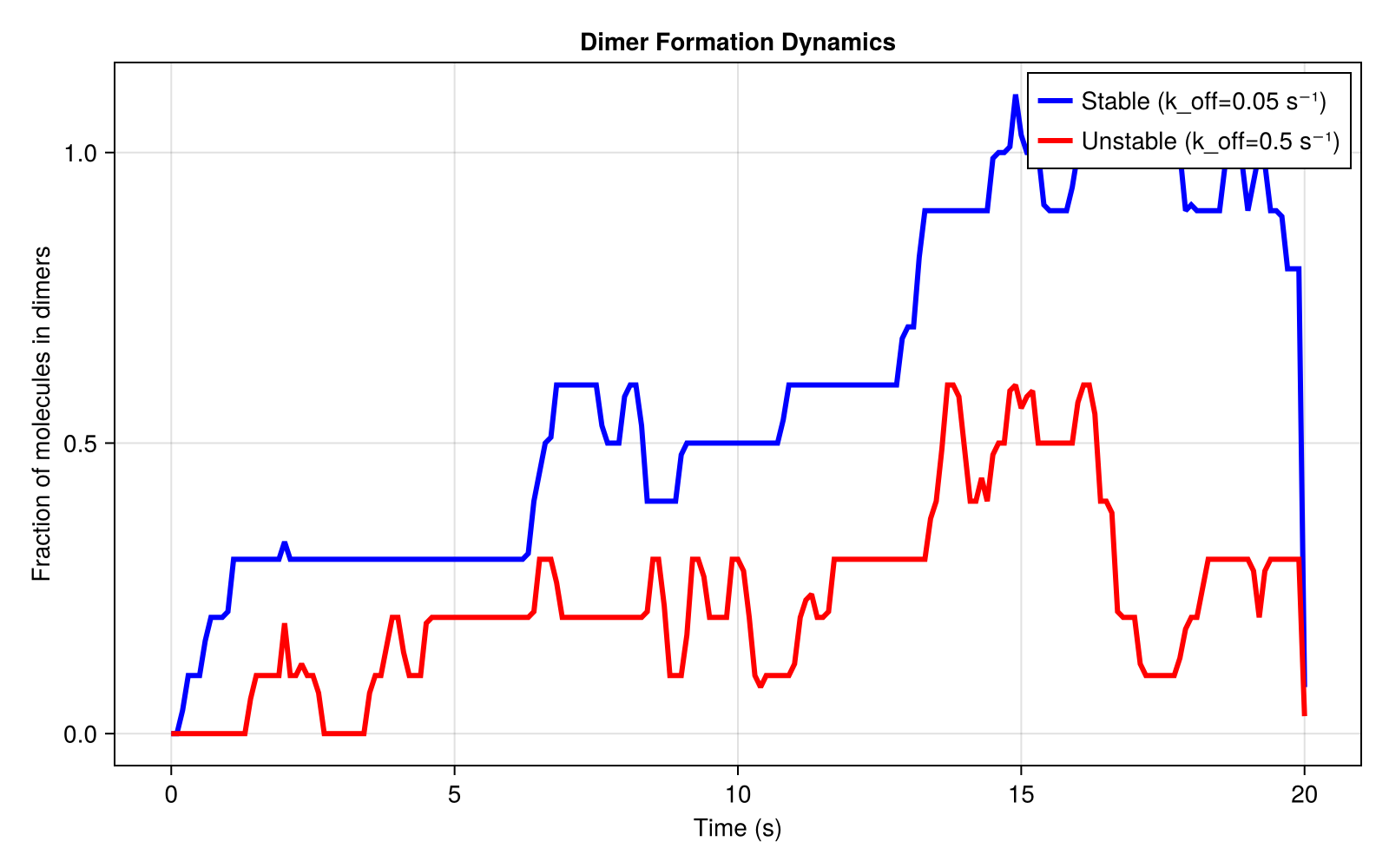

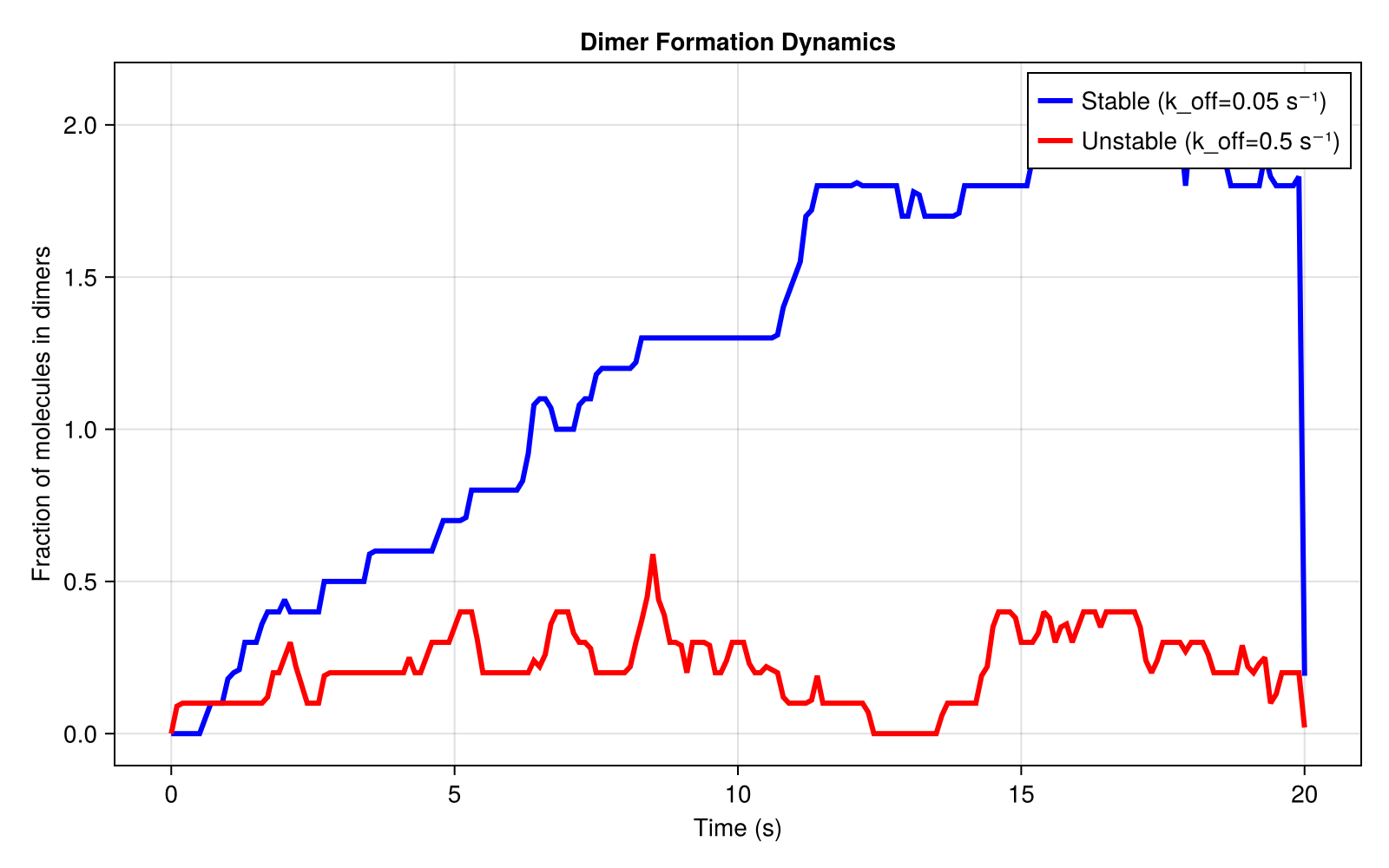

Example block output

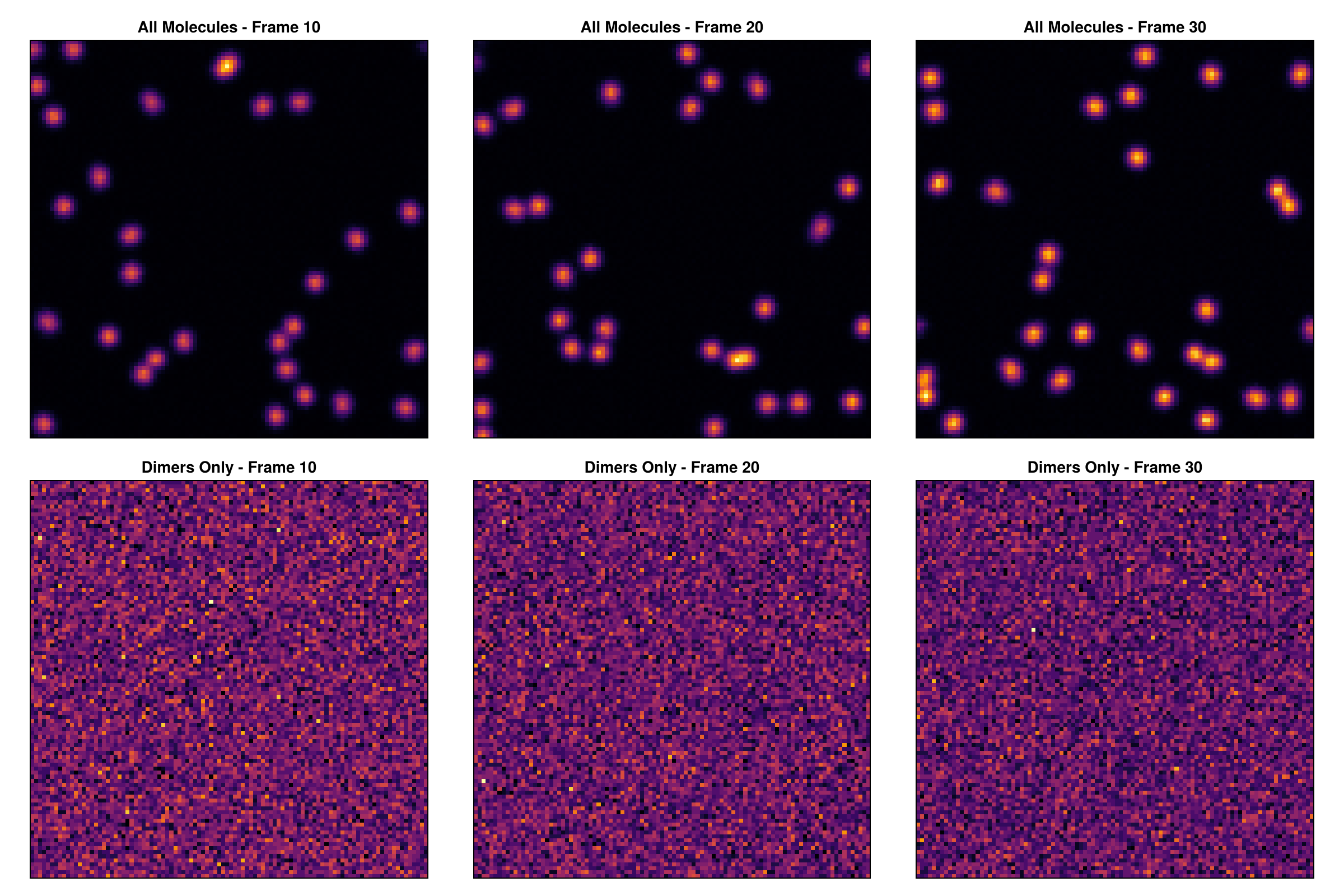

Generating Microscope Images

This example shows how to generate microscope images from diffusion simulations:

using SMLMSim
using CairoMakie
using MicroscopePSFs

# Set simulation parameters
params = DiffusionSMLMParams(
    density = 0.3,        # molecules per μm²
    box_size = 10.0,      # μm
    diff_monomer = 0.1,   # μm²/s
    diff_dimer = 0.05,    # μm²/s
    k_off = 0.2,          # s⁻¹
    r_react = 0.01,       # μm
    d_dimer = 0.05,       # μm
    dt = 0.01,            # s
    t_max = 5.0,          # s
    camera_framerate = 10.0,  # fps
    camera_exposure = 0.1     # s
)

# Run simulation
smld = simulate(params)

# Set up camera and PSF
pixelsize = 0.1  # 100nm pixels
pixels = Int64(round(params.box_size/pixelsize))
camera = IdealCamera(1:pixels, 1:pixels, pixelsize)

# Set up PSF (Gaussian with 150nm width)
psf = MicroscopePSFs.GaussianPSF(0.15)  # 150nm PSF width

# Generate images for all molecules
images_all = gen_images(smld, psf;
    bg=5.0,
    poisson_noise=true
)

# Extract only dimers
dimer_smld = get_dimers(smld)

# Generate images showing only dimers
images_dimers = gen_images(dimer_smld, psf;
    bg=5.0,
    poisson_noise=true
)

# Visualize images
function display_frames(images_all, images_dimers, frame_indices)
    fig = Figure(size=(1200, 800))

    for (i, frame) in enumerate(frame_indices)
        # Row 1: All molecules
        ax1 = Axis(fig[1, i],
            title="All Molecules - Frame $frame",
            aspect=DataAspect(),
            yreversed=true
        )
        hidedecorations!(ax1)

        # Row 2: Dimers only
        ax2 = Axis(fig[2, i],
            title="Dimers Only - Frame $frame",
            aspect=DataAspect(),
            yreversed=true
        )
        hidedecorations!(ax2)

        # Display images
        heatmap!(ax1, transpose(images_all[:, :, frame]), colormap=:inferno)
        heatmap!(ax2, transpose(images_dimers[:, :, frame]), colormap=:inferno)
    end

    return fig
end

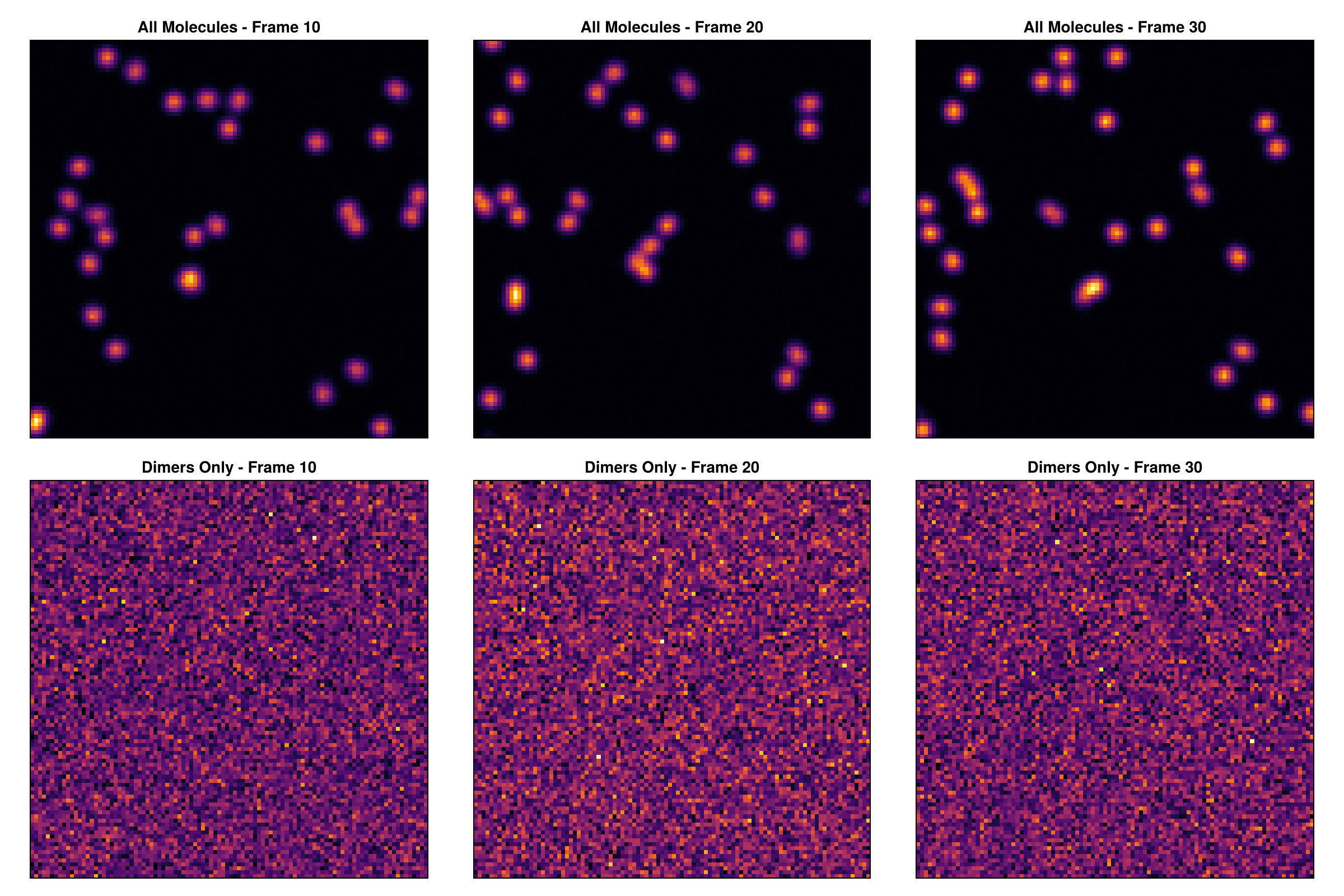

# Show frames 10, 20, 30
frame_indices = [10, 20, 30]
fig = display_frames(images_all, images_dimers, frame_indices)

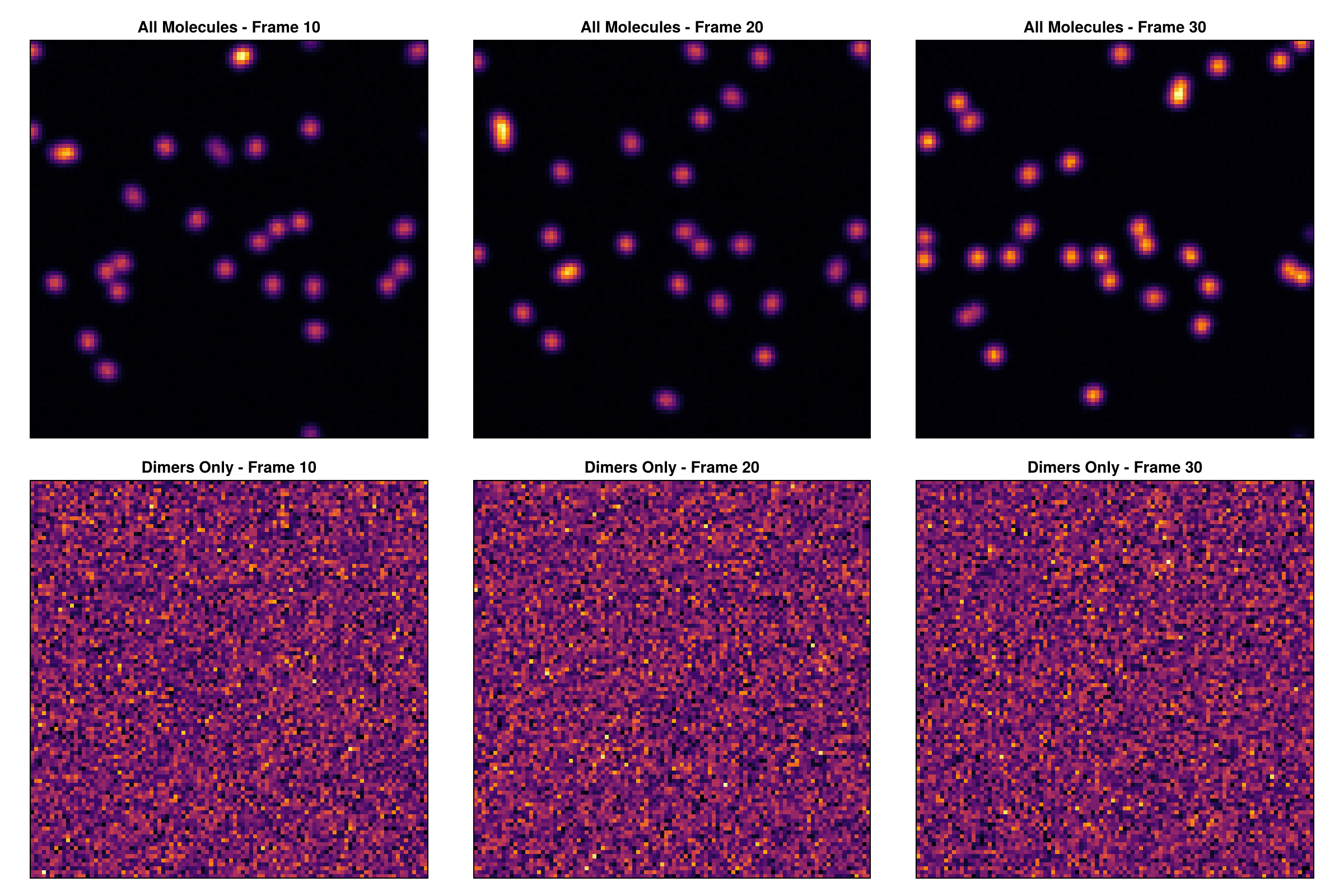

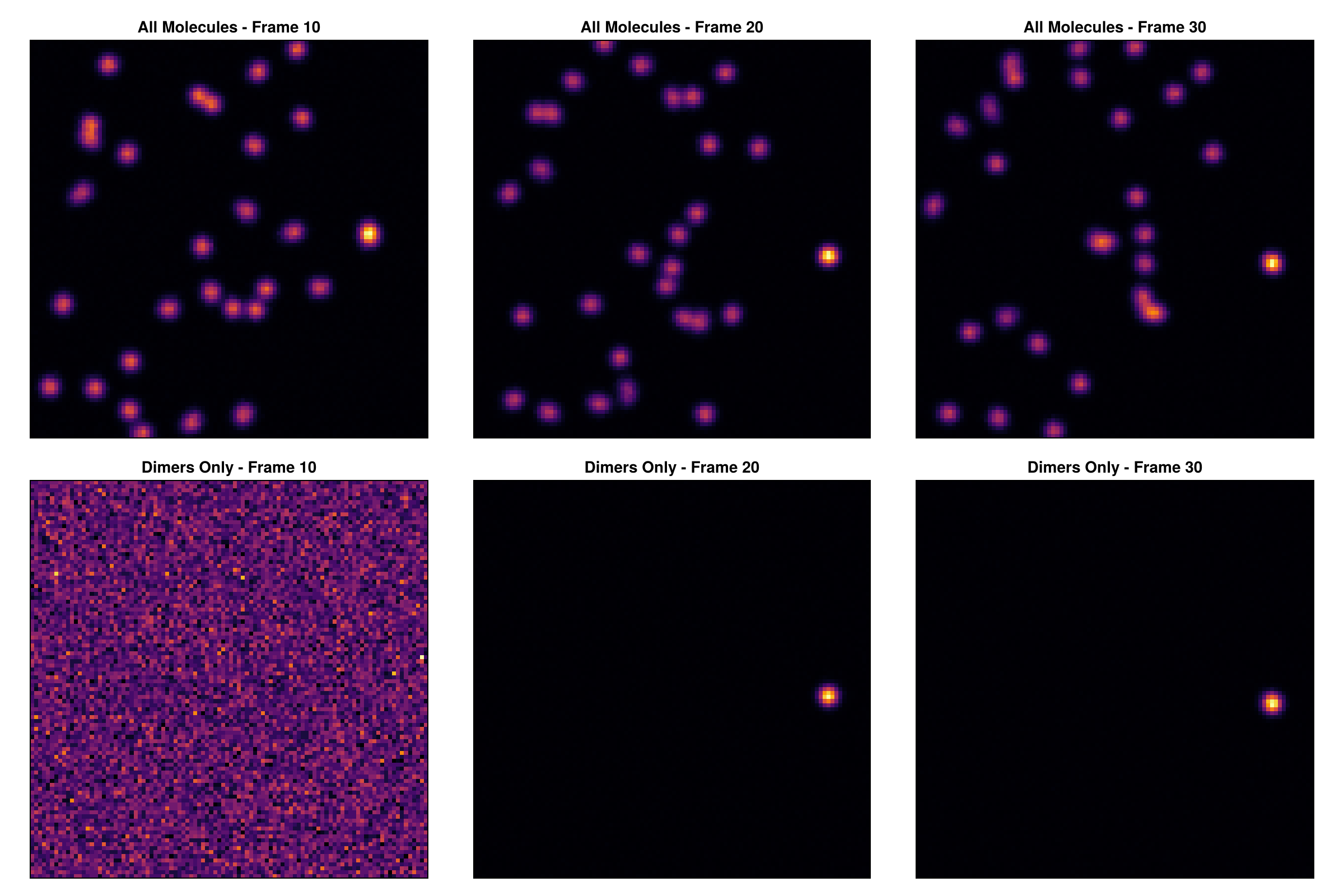

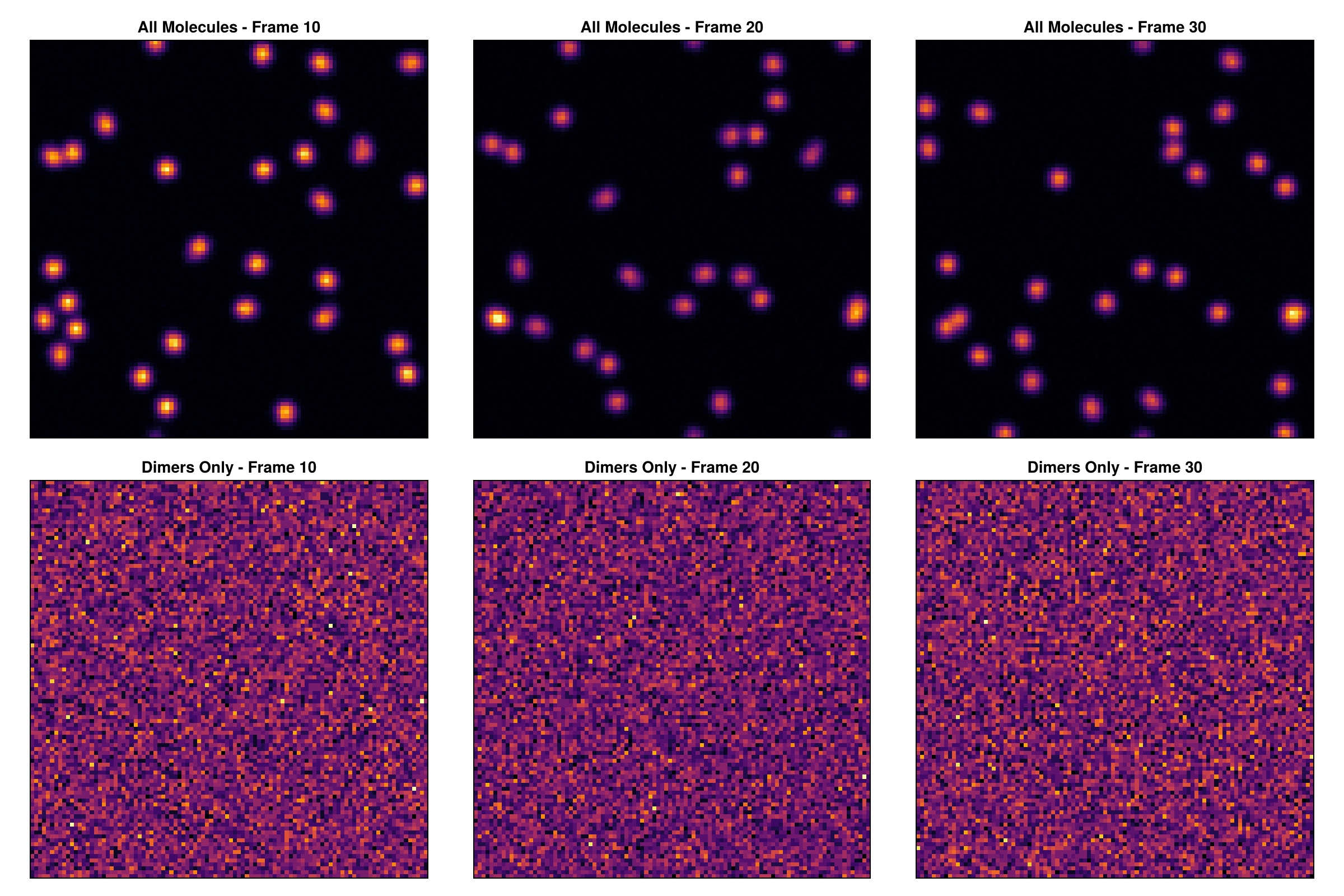

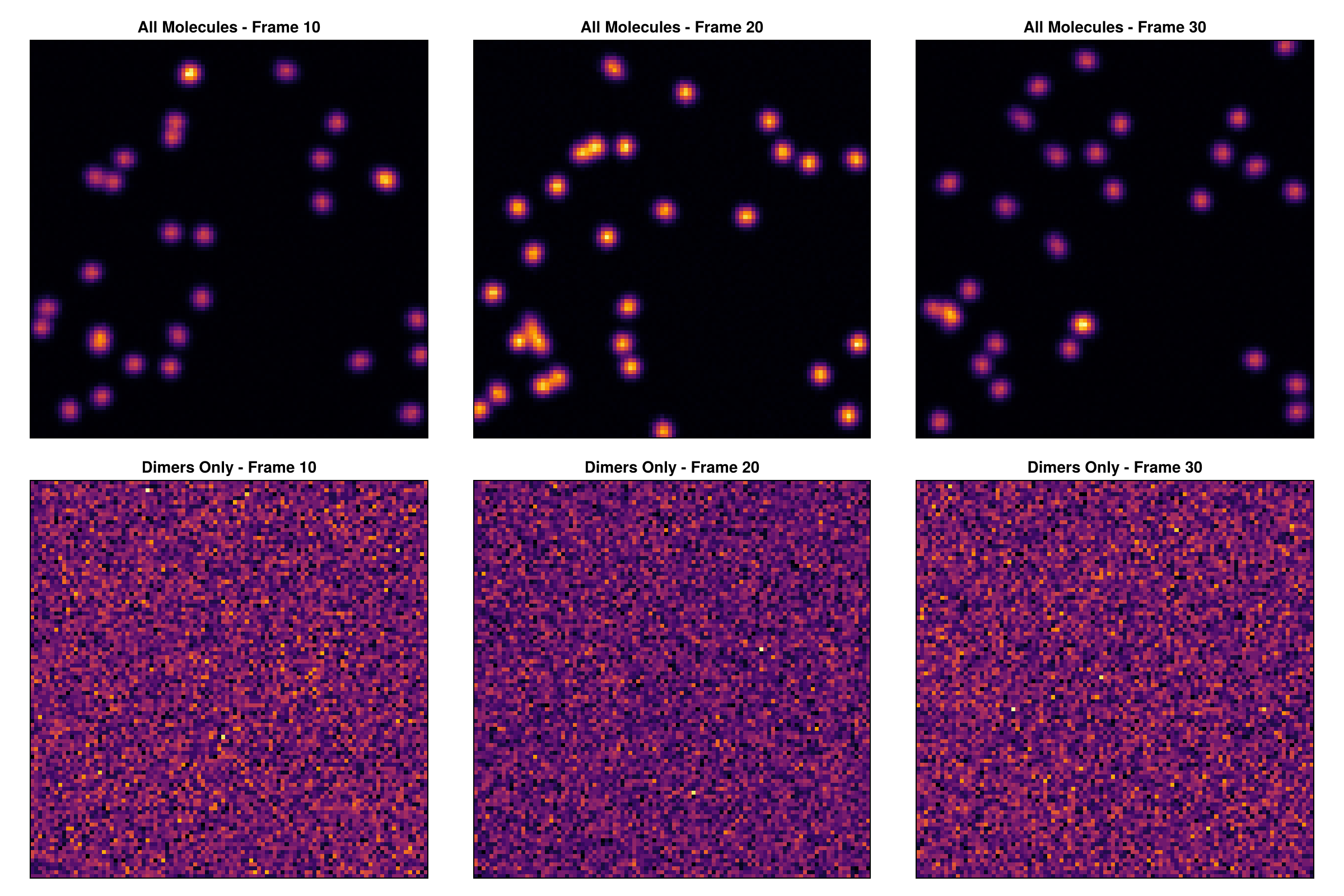

Example block output

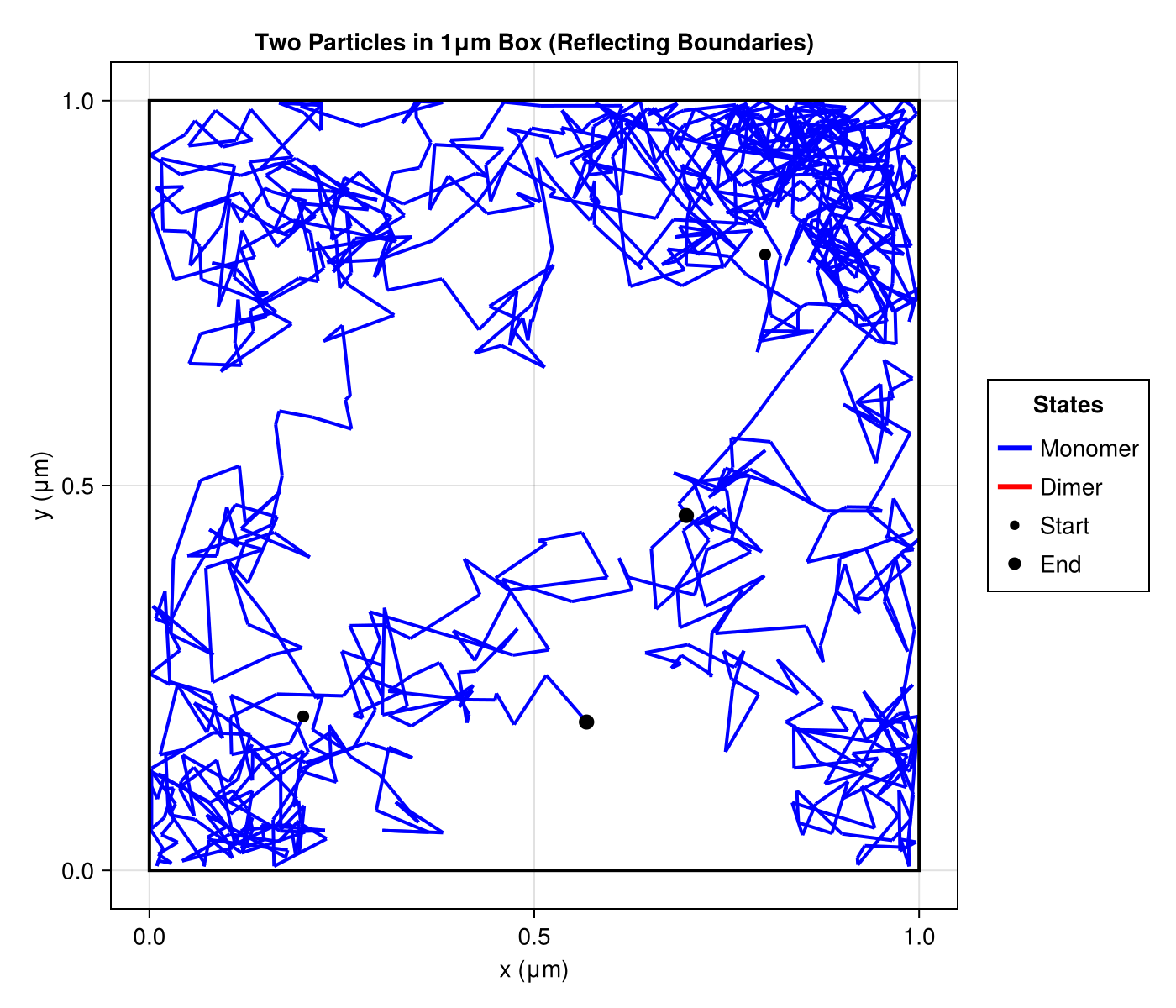

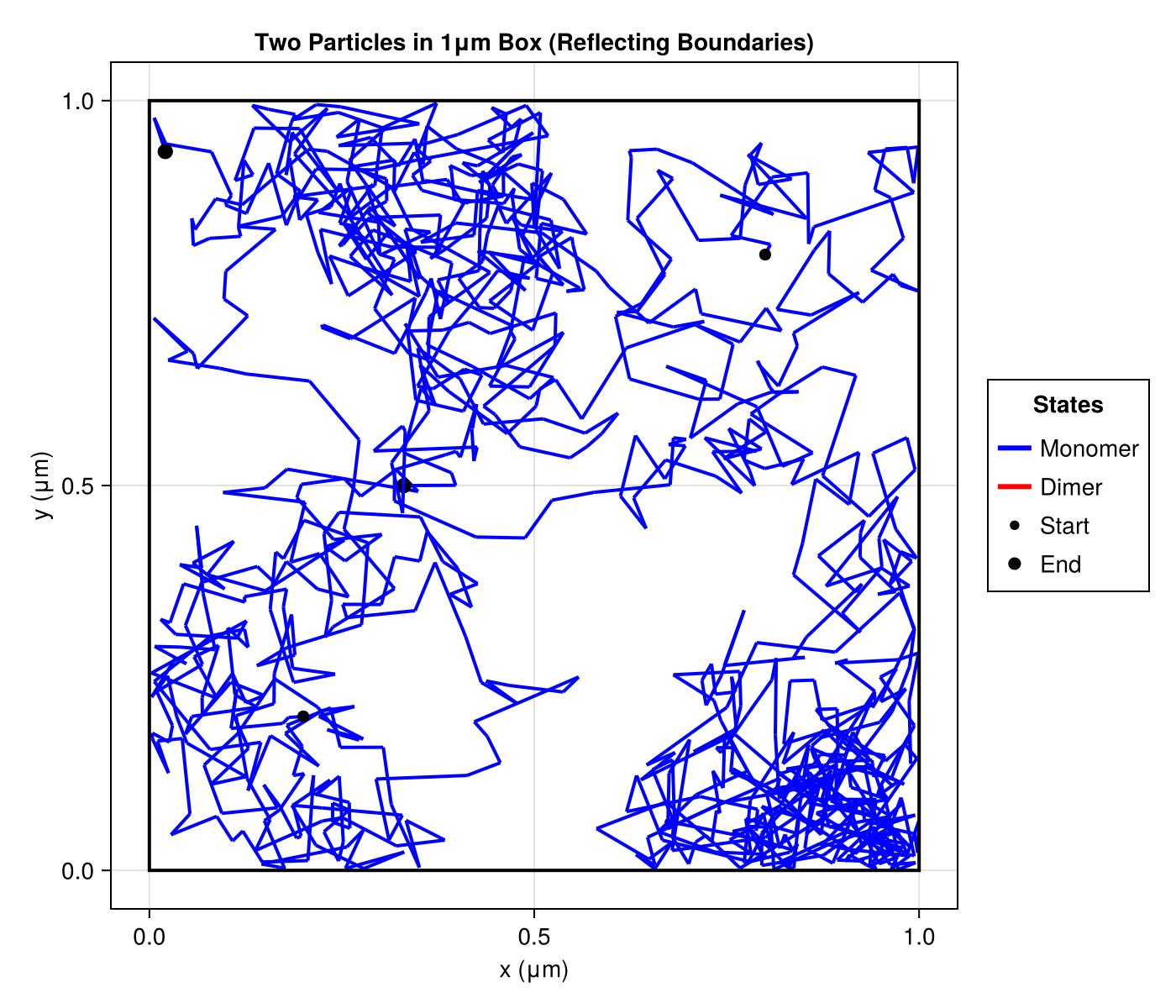

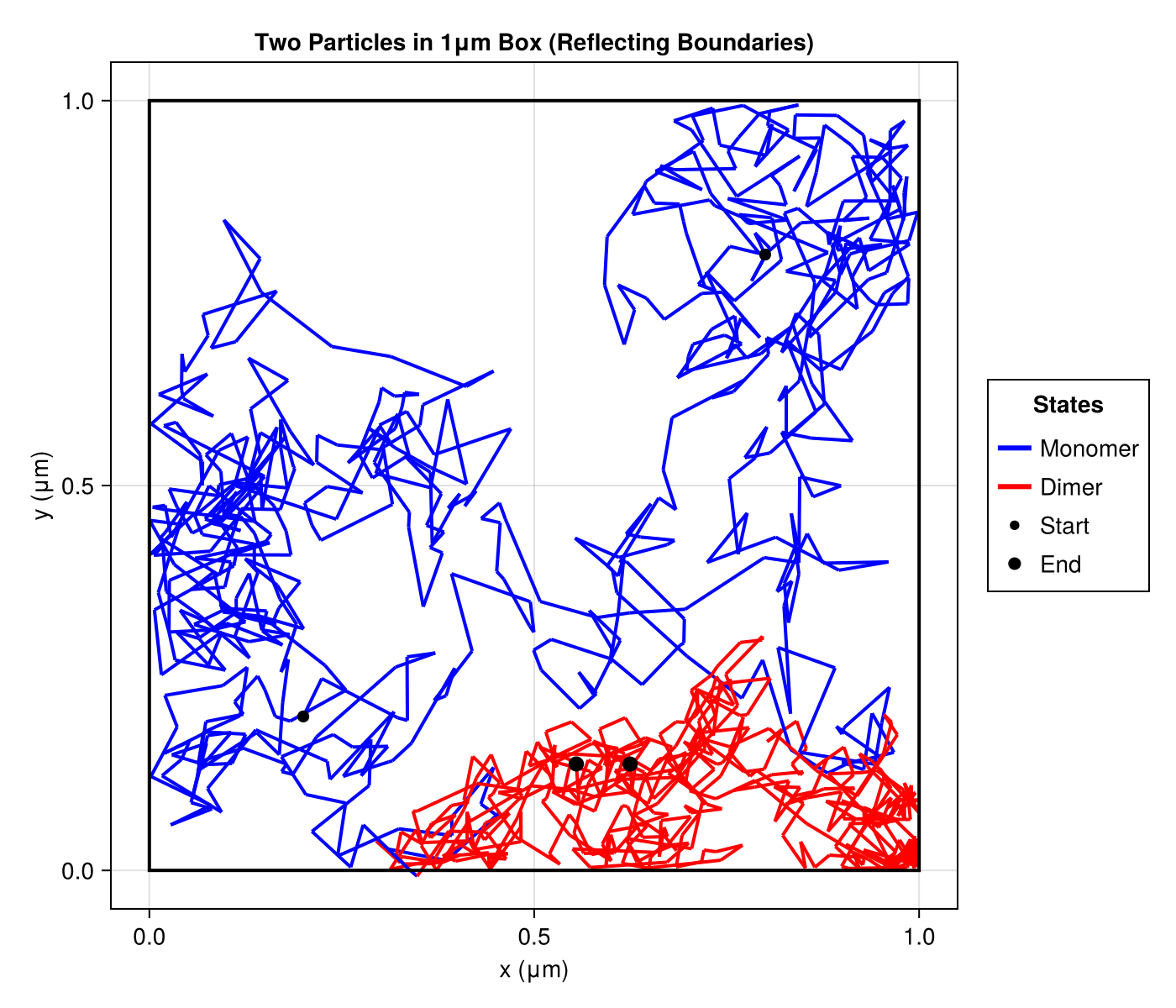

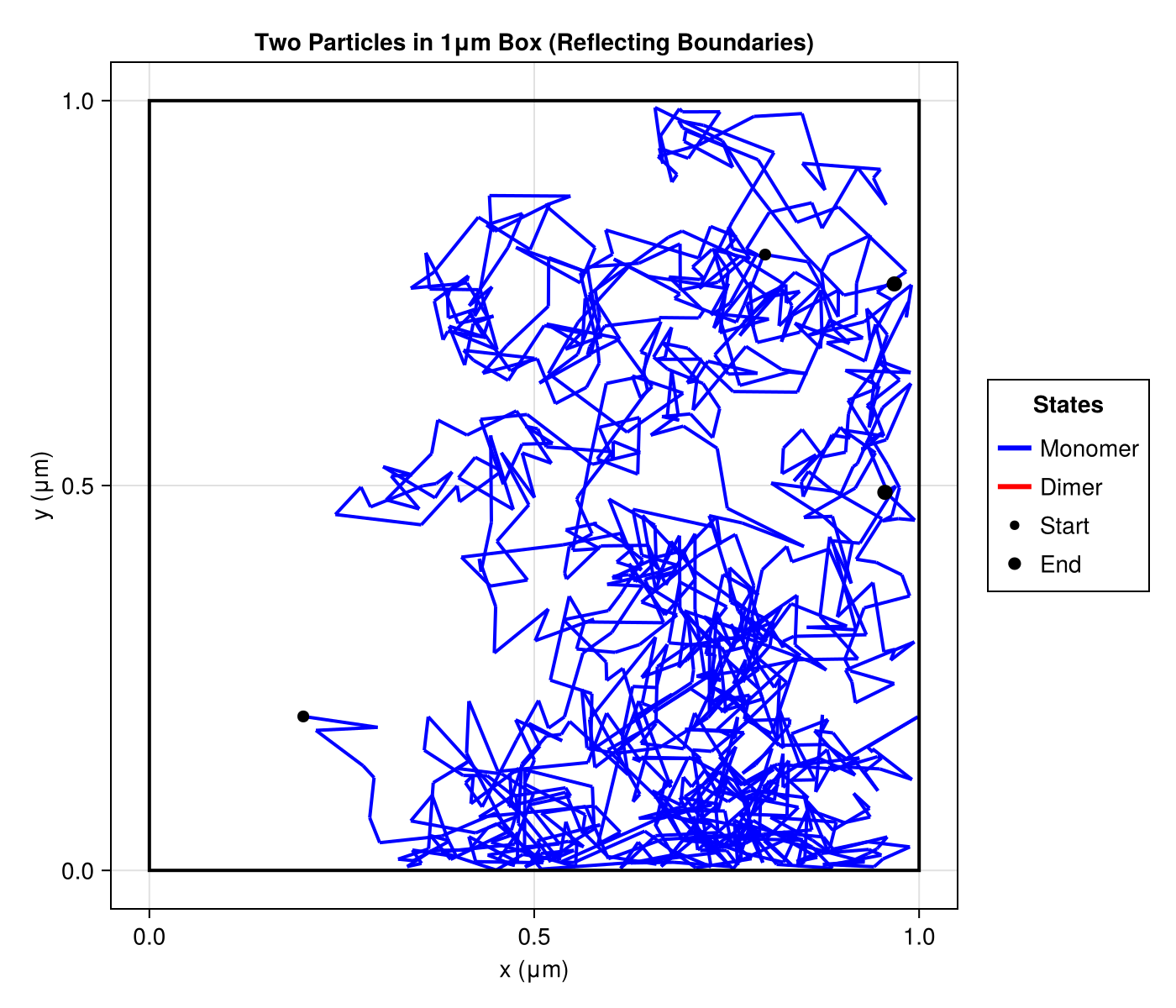

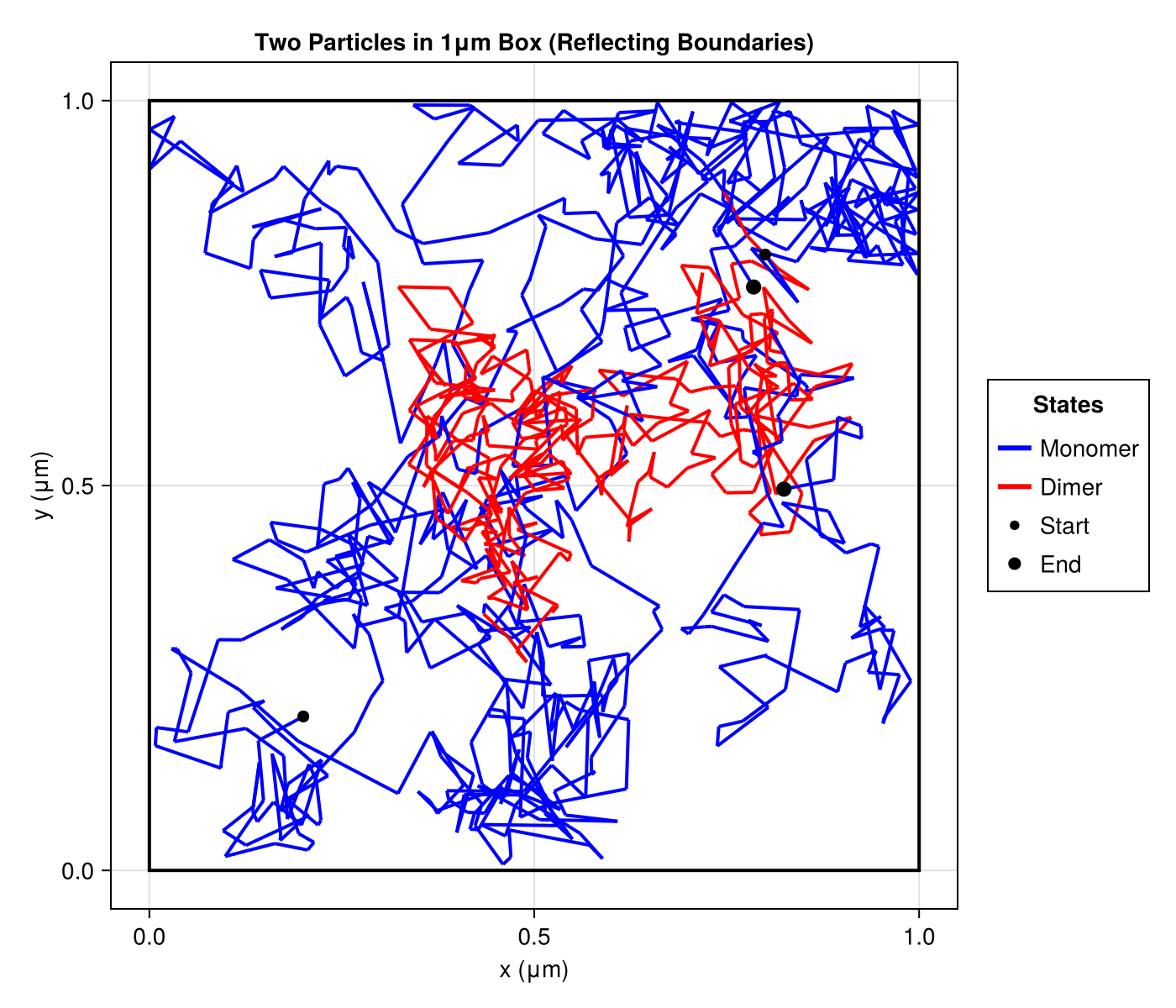

Two Interacting Particles

This example shows two particles interacting in a small box with reflecting boundary conditions, using the new starting conditions feature to place them at specific initial positions:

using SMLMSim
using CairoMakie

# Set up a minimal simulation with just two particles
params = DiffusionSMLMParams(
    box_size = 1.0,       # 1 μm box for close interactions
    diff_monomer = 0.1,   # μm²/s
    diff_dimer = 0.05,    # μm²/s
    k_off = 0.5,          # s⁻¹ (moderate dimer stability)
    r_react = 0.05,       # μm (large reaction radius for demonstration)
    d_dimer = 0.07,       # μm (dimer separation)
    dt = 0.01,            # s
    t_max = 5.0,          # s
    boundary = "reflecting",  # Reflecting boundaries
    camera_framerate = 10.0   # fps
)

# Create two particles with specific initial positions
particle1 = DiffusingEmitter2D{Float64}(
    0.2, 0.2,       # Position in lower-left quadrant
    1000.0,         # Photons
    0.0,            # Initial timestamp
    1,              # Initial frame
    1,              # Dataset
    1,              # track_id
    :monomer,       # Initial state
    nothing         # No partner initially
)

particle2 = DiffusingEmitter2D{Float64}(
    0.8, 0.8,       # Position in upper-right quadrant
    1000.0,         # Photons
    0.0,            # Initial timestamp
    1,              # Initial frame
    1,              # Dataset
    2,              # track_id
    :monomer,       # Initial state
    nothing         # No partner initially
)

# Run simulation with custom starting positions
smld = simulate(params; starting_conditions=[particle1, particle2])

track_smlds = get_tracks(smld)

# Convert to the format needed for plotting
trajectories = []
for track_smld in track_smlds
    # Get ID from first emitter
    id = track_smld.emitters[1].track_id

    # Sort by timestamp
    sort!(track_smld.emitters, by = e -> e.timestamp)

    # Extract coordinates and state
    times = [e.timestamp for e in track_smld.emitters]
    x = [e.x for e in track_smld.emitters]
    y = [e.y for e in track_smld.emitters]
    states = [e.state for e in track_smld.emitters]

    push!(trajectories, (id=id, times=times, x=x, y=y, states=states))
end

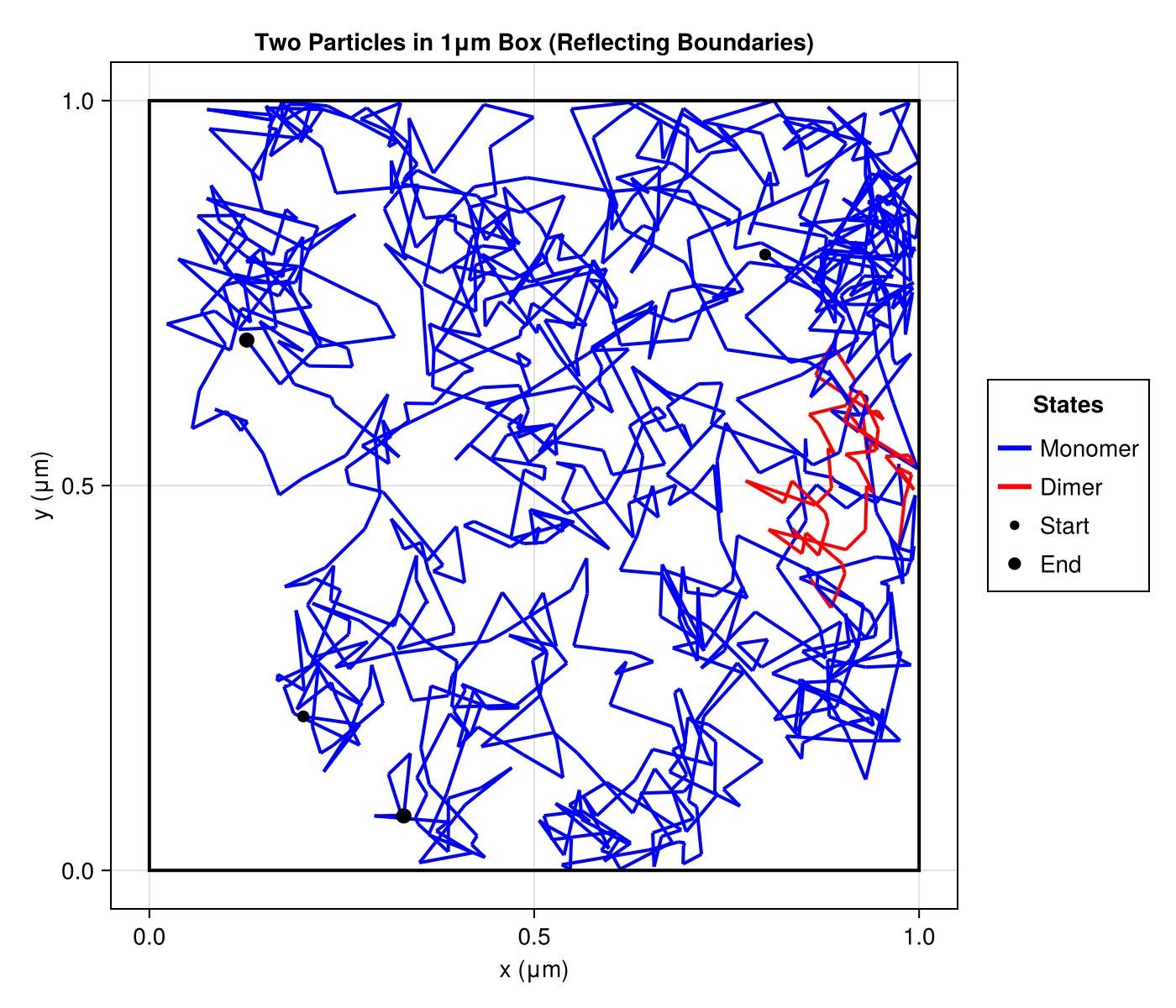

# Visualize interaction dynamics
fig = Figure(size=(700, 600))

ax = Axis(fig[1, 1],
    title="Two Particles in 1μm Box (Reflecting Boundaries)",
    xlabel="x (μm)",
    ylabel="y (μm)",
    aspect=DataAspect()
)

# Plot trajectories with state-dependent coloring
for (i, traj) in enumerate(trajectories)
    # Create segments with colors based on state
    segments_x = []
    segments_y = []
    colors = []

    for j in 1:(length(traj.times)-1)
        push!(segments_x, [traj.x[j], traj.x[j+1]])
        push!(segments_y, [traj.y[j], traj.y[j+1]])
        push!(colors, traj.states[j] == :monomer ? :blue : :red)
    end

    # Plot each segment with appropriate color
    for j in 1:length(segments_x)
        lines!(ax, segments_x[j], segments_y[j],
               color=colors[j], linewidth=2,
               label=j==1 ? "Particle $(traj.id)" : nothing)
    end

    # Mark starting position
    scatter!(ax, [traj.x[1]], [traj.y[1]],
            color=:black, marker=:circle, markersize=10)

    # Mark ending position
    scatter!(ax, [traj.x[end]], [traj.y[end]],
            color=:black, marker=:star, markersize=12)
end

# Show box boundaries
box = [0 0; 1 0; 1 1; 0 1; 0 0]
lines!(ax, box[:, 1], box[:, 2], color=:black, linewidth=2)

# Add legend for state colors
legend_elements = [
    LineElement(color=:blue, linewidth=3),
    LineElement(color=:red, linewidth=3),
    MarkerElement(color=:black, marker=:circle, markersize=8),
    MarkerElement(color=:black, marker=:star, markersize=10)
]
legend_labels = ["Monomer", "Dimer", "Start", "End"]

Legend(fig[1, 2], legend_elements, legend_labels, "States")

# Set axis limits with some padding
limits!(ax, -0.05, 1.05, -0.05, 1.05)

fig
Example block output
